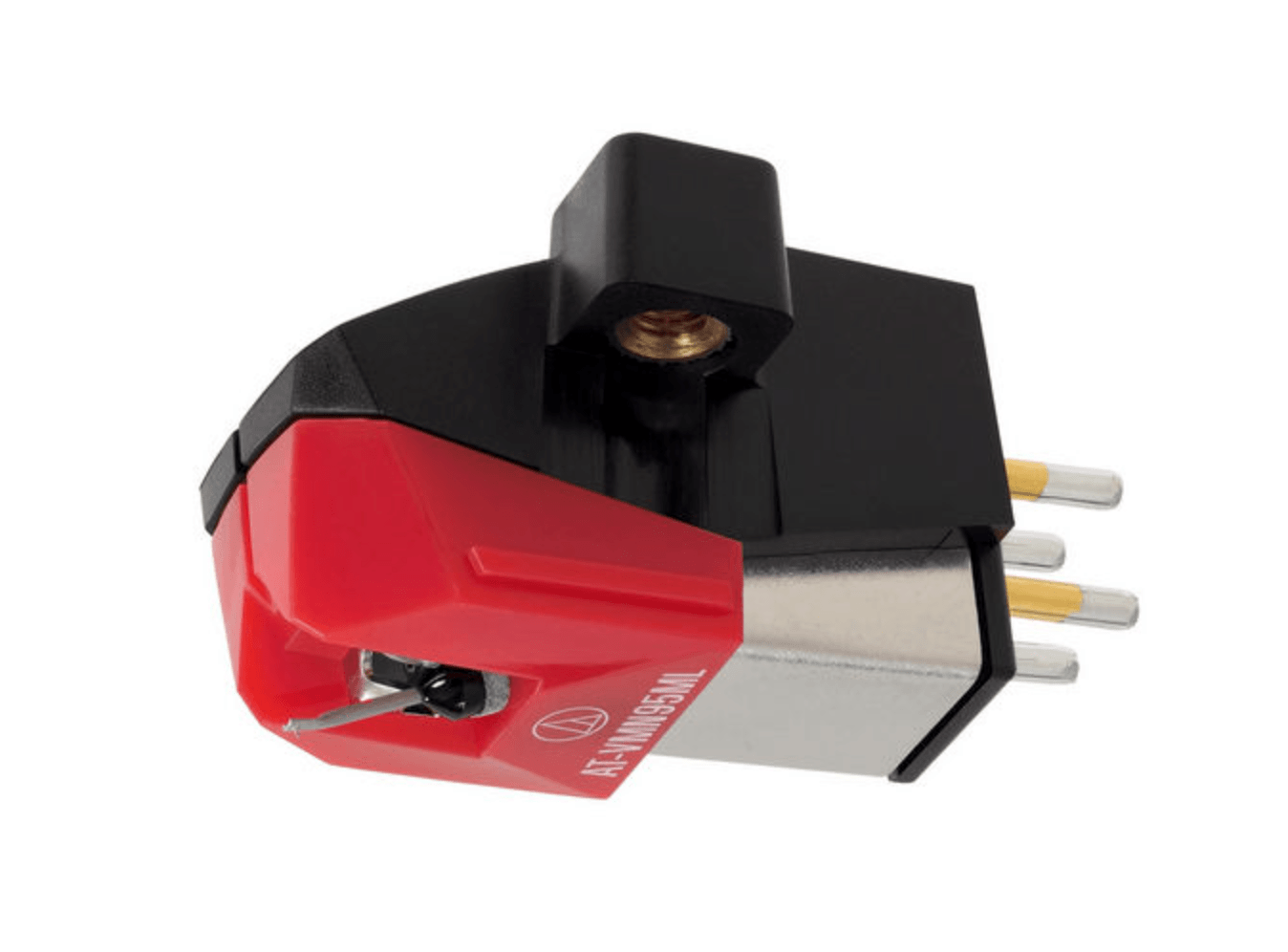

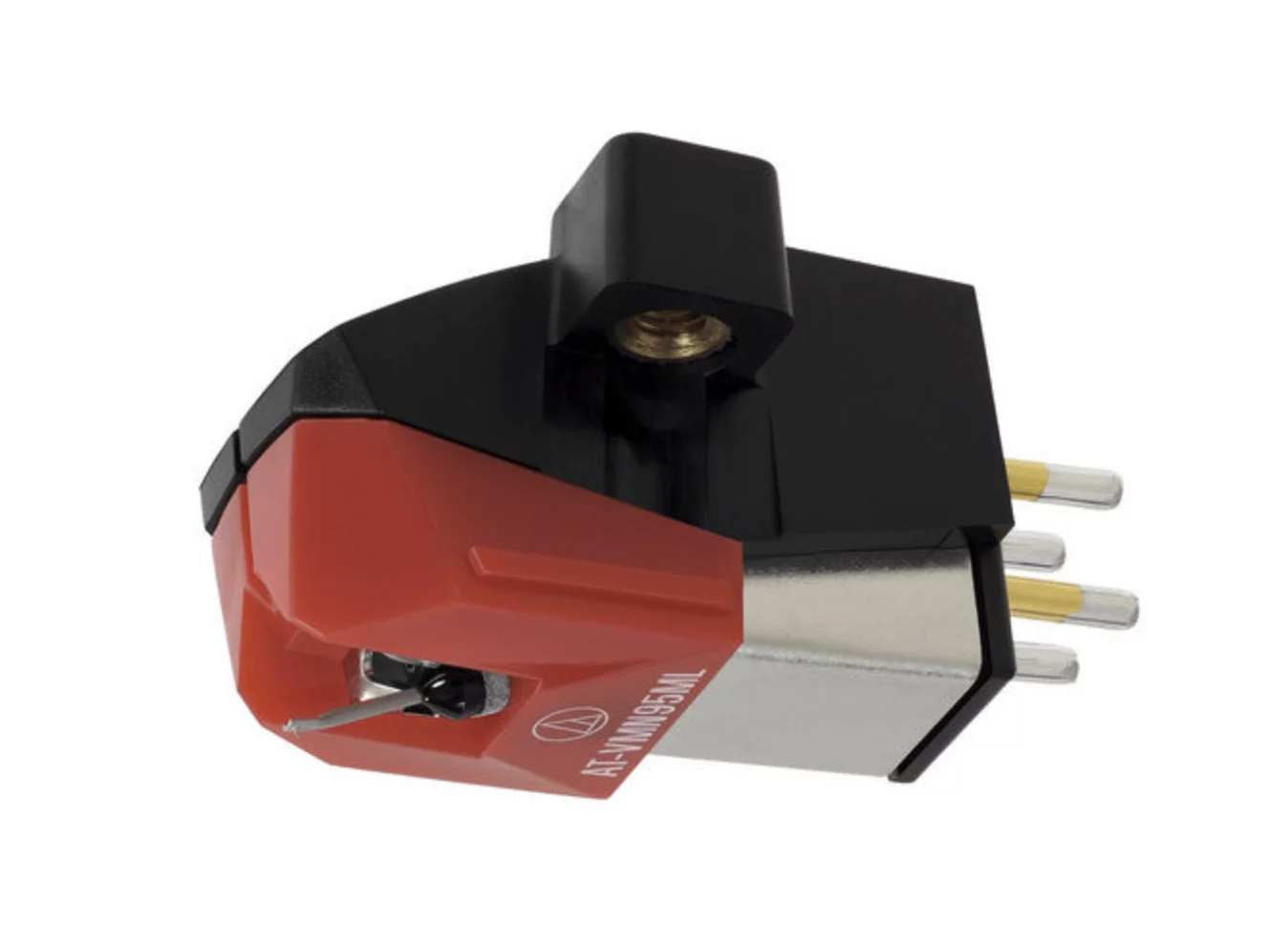

Audio-Technica VM95 Cartridge

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required.

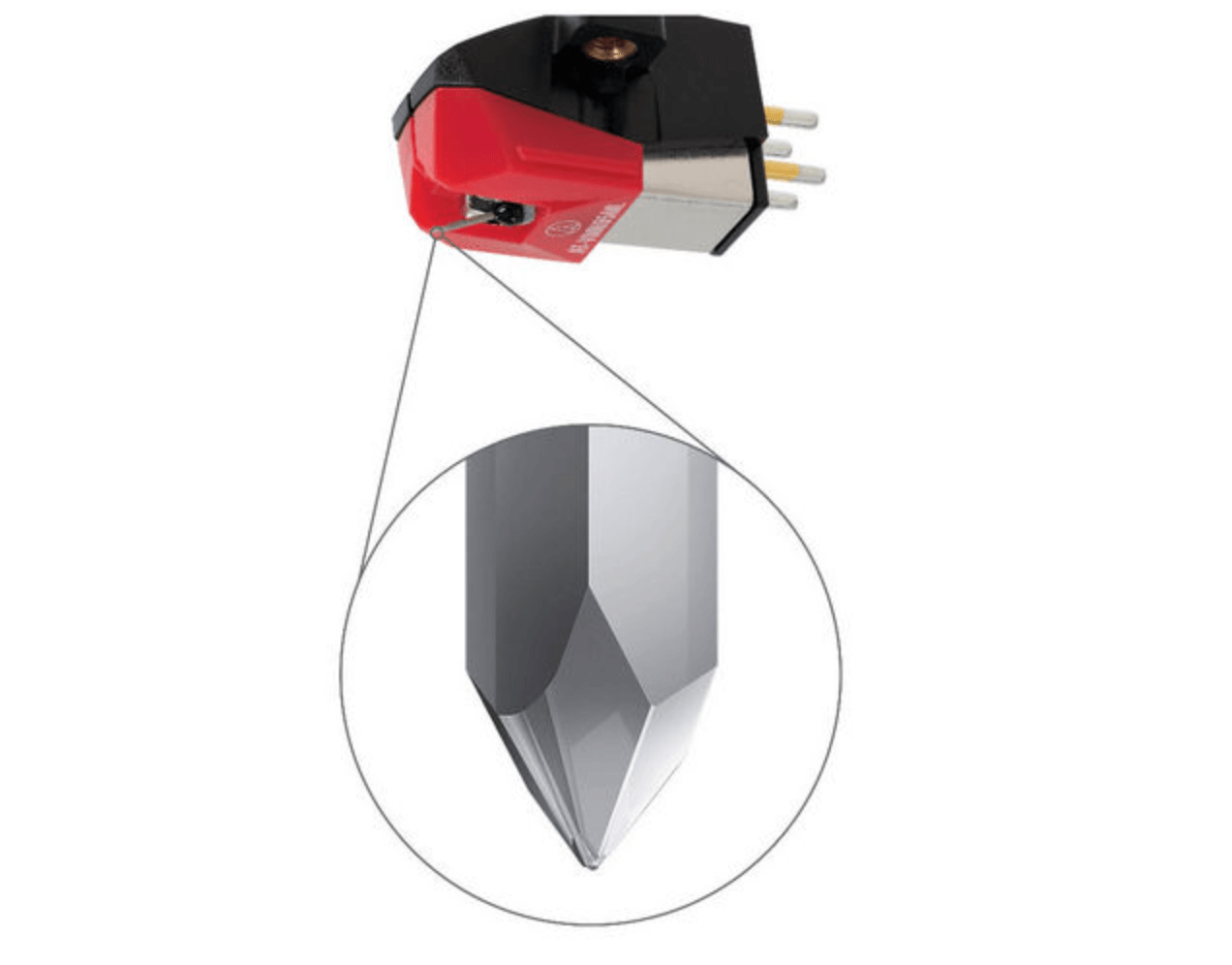

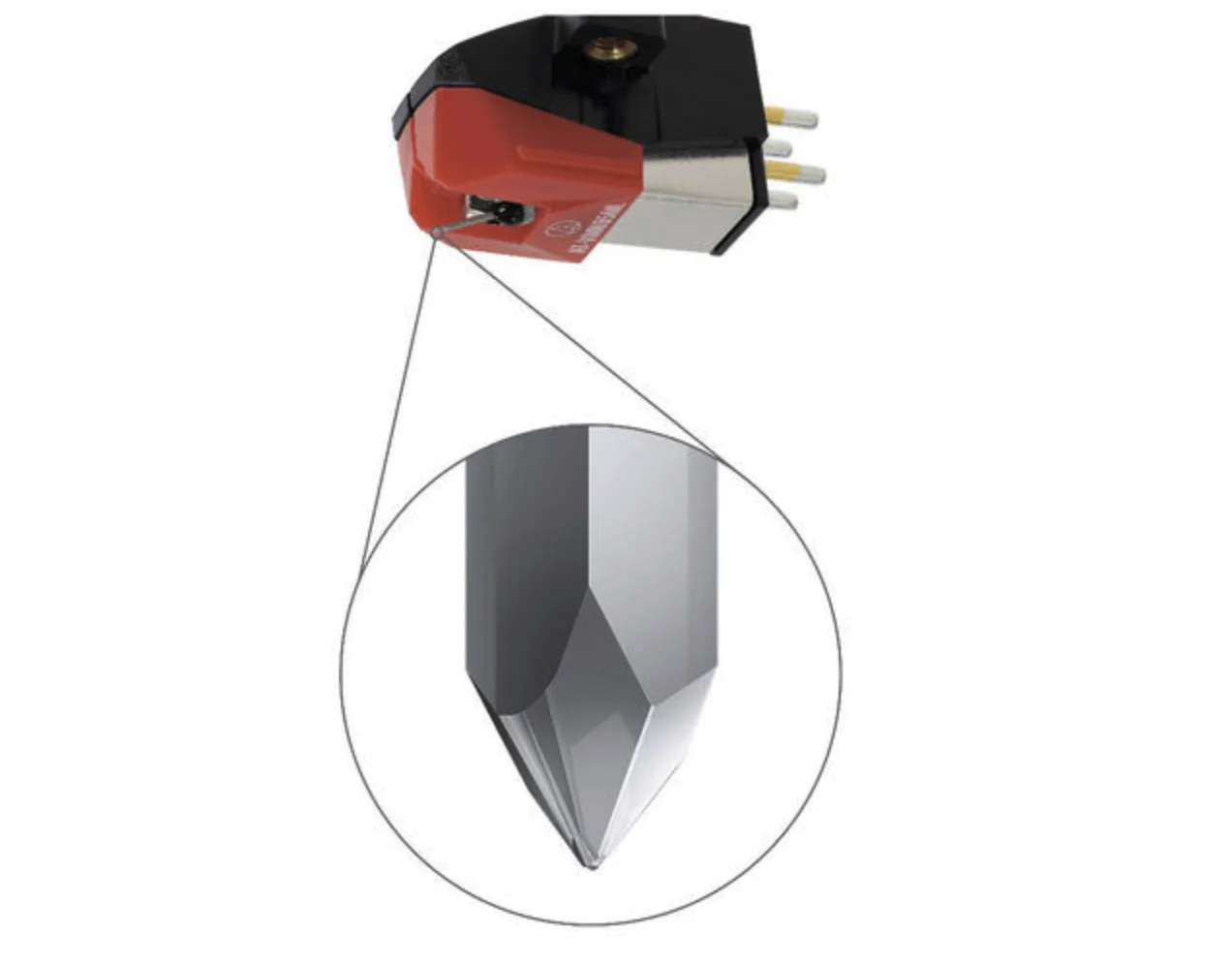

• VM Series dual magnet cartridge with 2.2 x 0.12 mm Microlinear stylus.
• Aluminium cantilever.
• Durable low-resonance polymer housing.
• Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required.
• Compatible with any AT-VMN95 replacement stylus.

Specifications:
Frequency Response 20-25000 Hz
Channel Separation 23 (dB at 1 kHz)
Vertical Tracking Angle 23°
Vertical Tracking Force 1.8-2.2g (2.0g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Coil Impedance 3.3 k ohms (1 kHz)
DC Resistance 485 ohms
Coil Inductance 550 mH (1 kHz)
Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance 1.5 dB (1 kHz)
Stylus Shape 2.2 x 0.12 mil Microlinear
Cantilever Aluminum pipe
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz)
Mounting Half-inch
Cartridge Weight 6.1g
Dimensions 17.2×18.9×28.3 mm
Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver.
