Monarch Receiver

The Monarch 5700 is a powerful receiver from the mid 70ties. It provides inputs for two turntables, two tape decks (or reel to reel) and one AUX input for e.g. CD Player or a Bluetooth bridge. This units has been serviced to ensure trouble free operation. It comes with 3 months warranty.

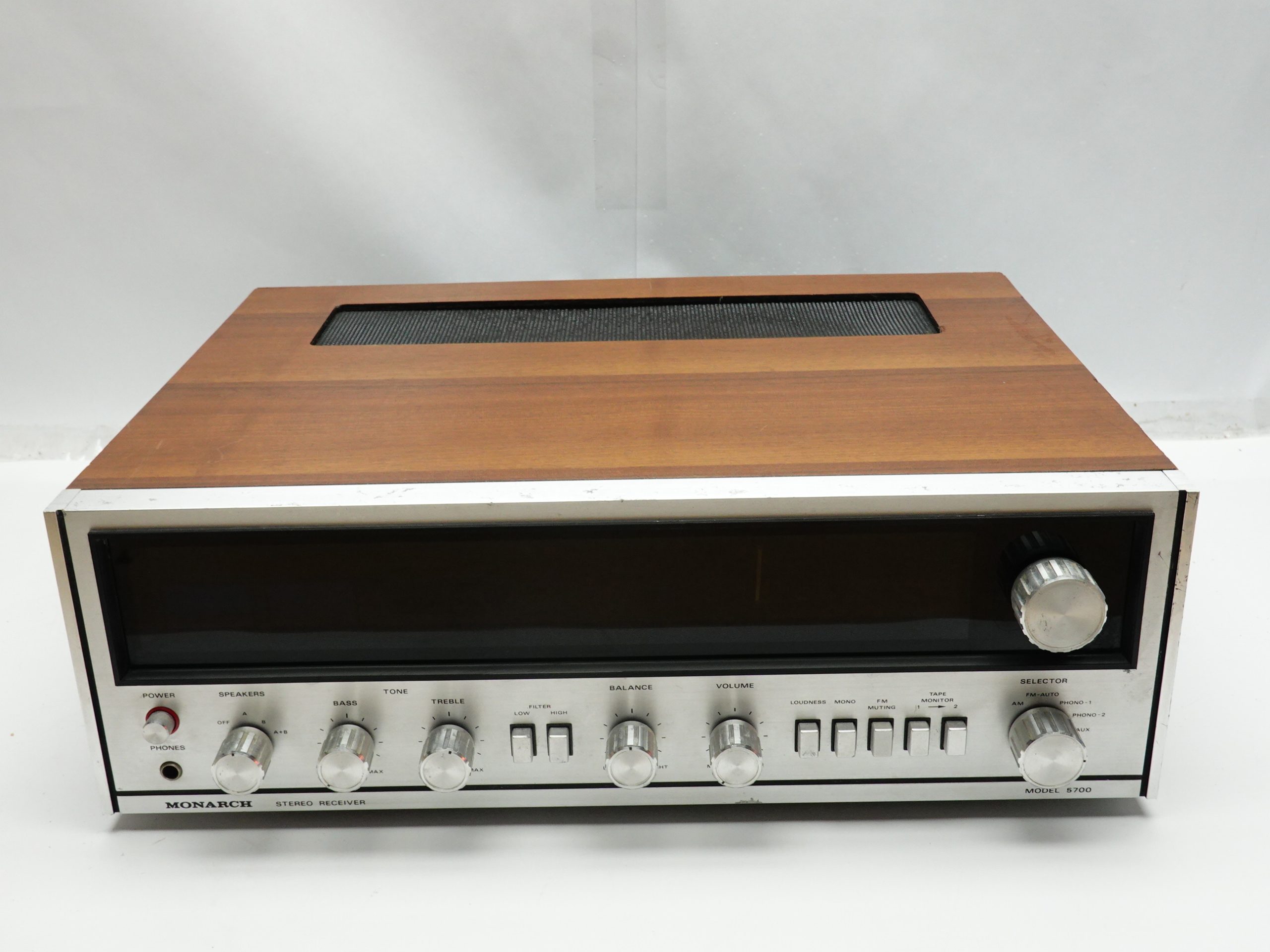

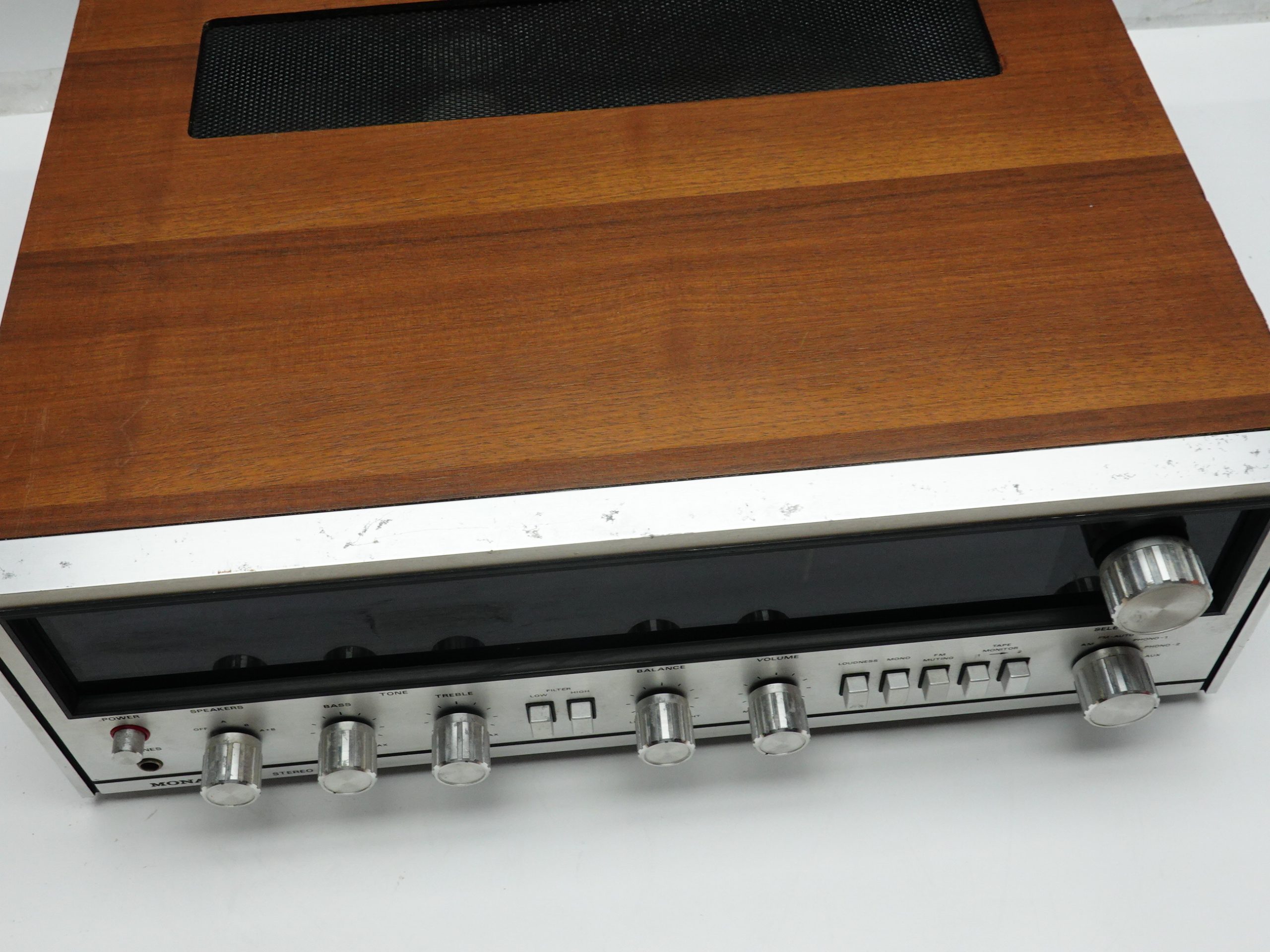

But the unit has some signs of age and use cosmetically as shown in the pictures. It has been priced accordingly. Great if you are keen to get a woody and don’t want to break the bank.

Specifications

• Year of manufacture: 1975
• Made in: Japan
• Color: Silver
• Remote control: No
• Power consumption:
• Dimensions (WxHxD): 445 x 150 x 390 mm.
• Weight: 10.5 kg
• Original price approx.: 1’000 DM

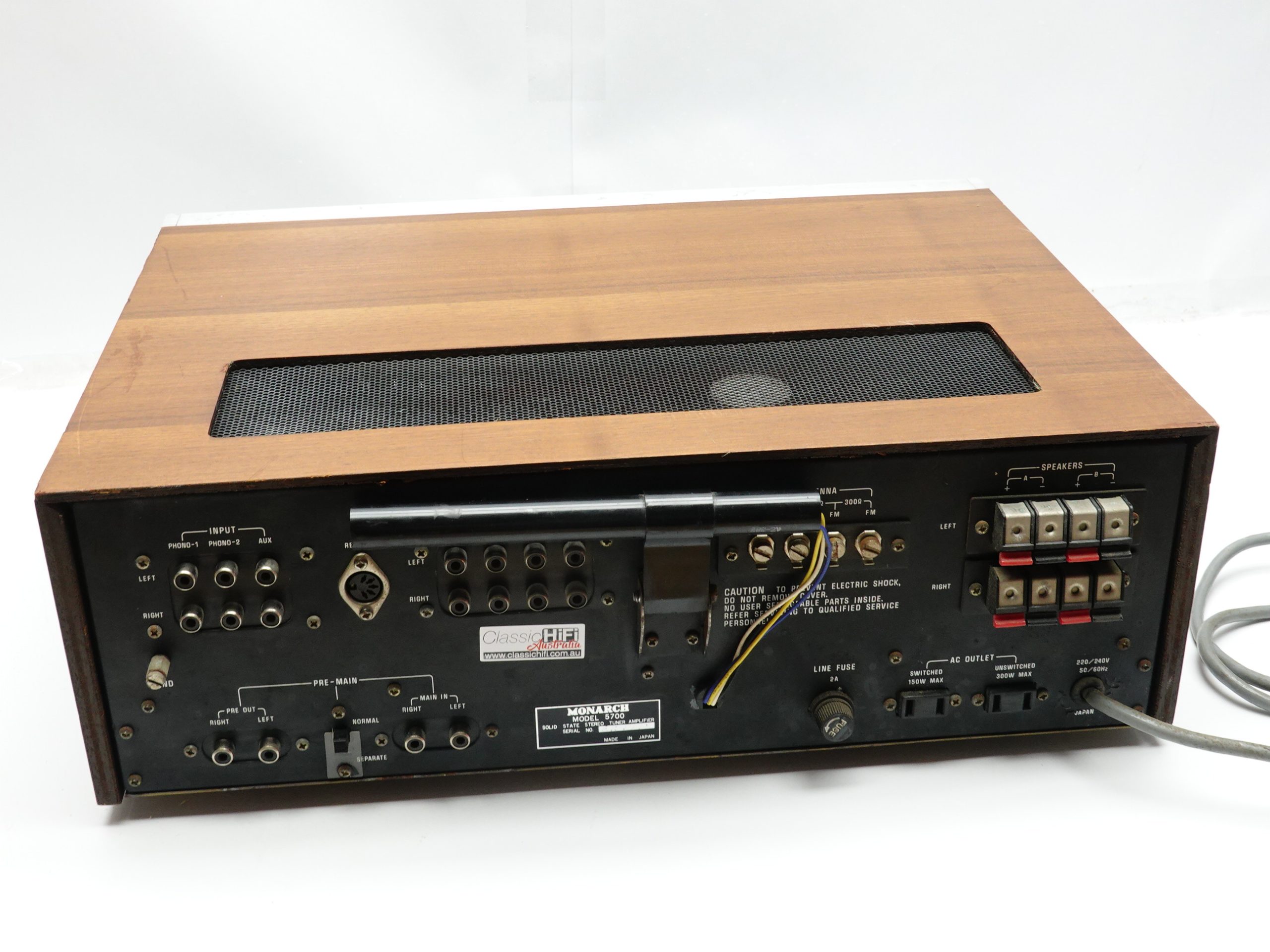

Connections

• Number of inputs:
  • Phono MM 1, 2: 2.5 mV / 50 kOhm

AUX: 150 mV / 45 kOhm

• • Tape Play 1, 2: 150 mV / 45 kOhm

Main In:

• • Antenna FM (75/300 Ohm), MW (300 Ohm).
• Number of outputs:
  • Tape Rec 1, 2: 150 mV / 100 Ohm.
  • Pre Out:
  • Headphones (6.3 mm jack)
  • 2 pairs of speakers

Technical Data

Amplifier

• Continuous power

8 Ohm: 2x 30 W 4 Ohm: 2x 45 W

• dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion: 0.8% (at nominal power)
• Attenuation factor: 30 (8 Ohm)
• Frequency response: 10 – 40’000 Hz
• Signal-to-noise ratio:
  • Phono MM: 70 dB
  • AUX, Tape: 80 dB
• Stereo channel separation:
• Tone control:
  • Bass: ± 10 dB at 100 Hz

Treble: ± 10 dB at 10 kHz

• Loudness: + 10 dB at 100 Hz, + 5 dB at 10 kHz
• High Filter: yes
• Low Filter (Subsonic): yes
