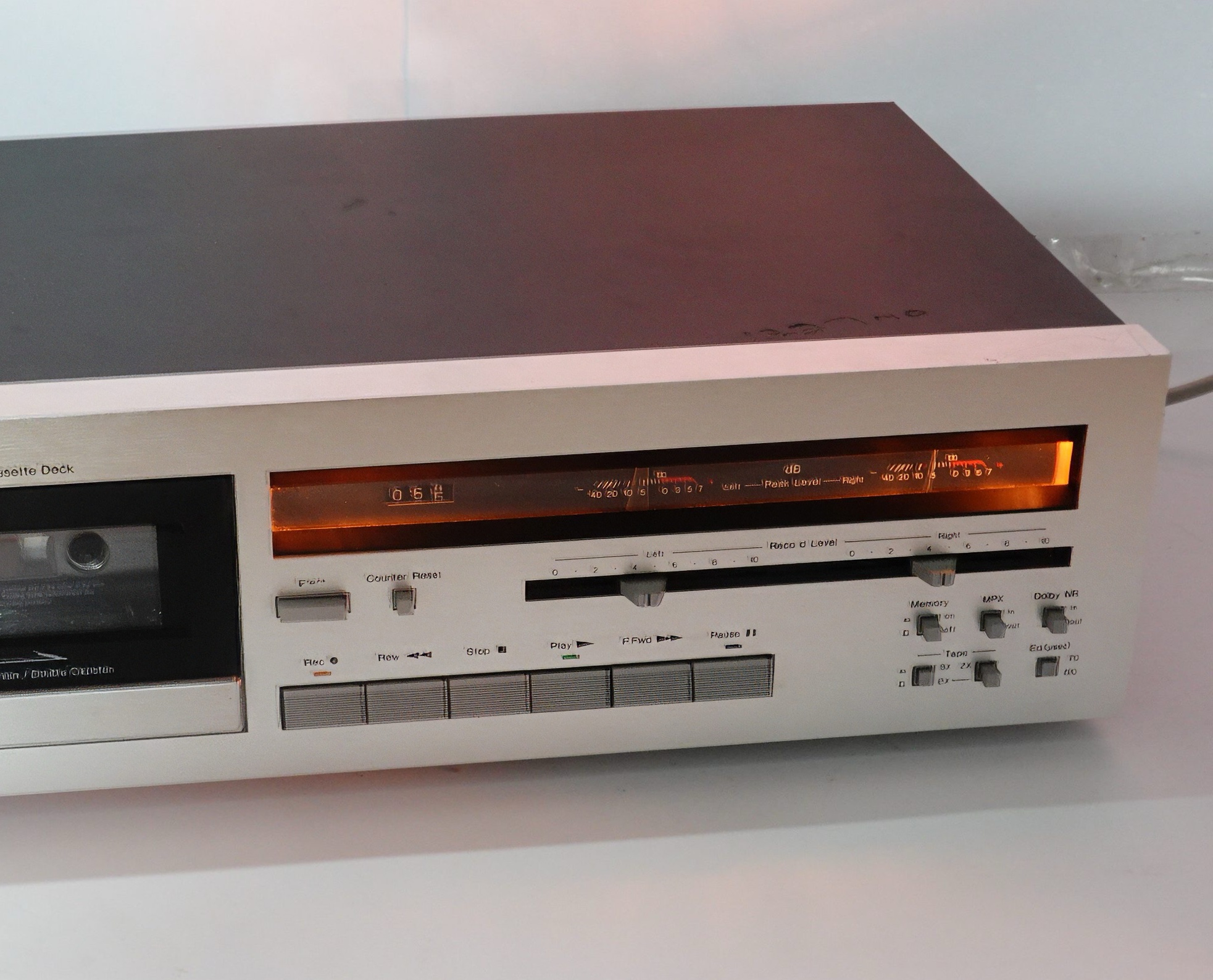

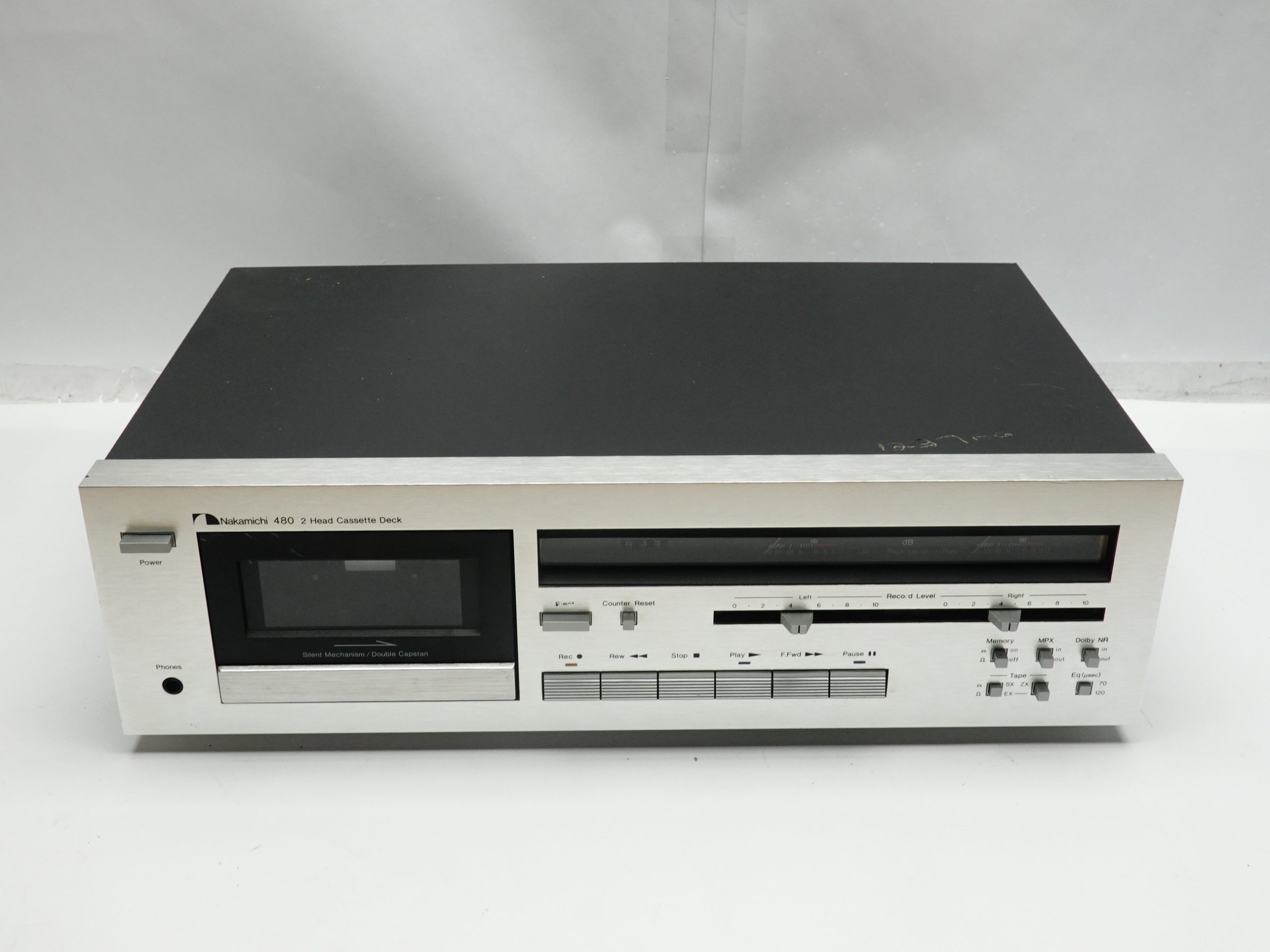

The Nakamichi 480 is a high end two head cassette deck from the late 70ties. It comes with Dolby B noise reduction, Manual Tape Type Selection and two lit upside down analog VU meters. Nakamichis Cassette Decks are legendary. There is not much that comes close to build quality and especially performance. For the best possible listening experience of the cassette medium, there is just no way around a Nakamichi.
This unit is cosmetically in very good condition and has received our full service package:
- New Capstan Belt
- New Counter Belt
- New Logic Control Belt
- New Idler Tyre
- Cleaning of capstans with chemicals
- Cleaning of heads
- Demagnetisation of heads
- Lubrication of moving parts
- Head and tape path alignment
- Playback level Calibration
- Speed Calibration
- Full function test
Below is a test recording made with the 480 and played back by it:
Specifications:
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 62dB (dolby B)

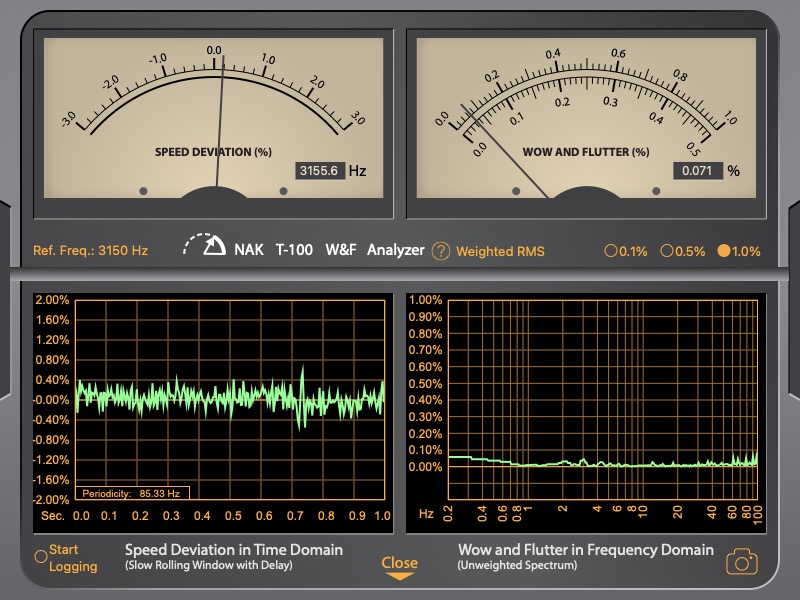

Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.2%
Input: 50mV (line)
Output: 0.6V (line)
Dimensions: 450 x 135 x 289mm
Weight: 6.4kg
Year: 1979
Price: USD $395 (1981)
