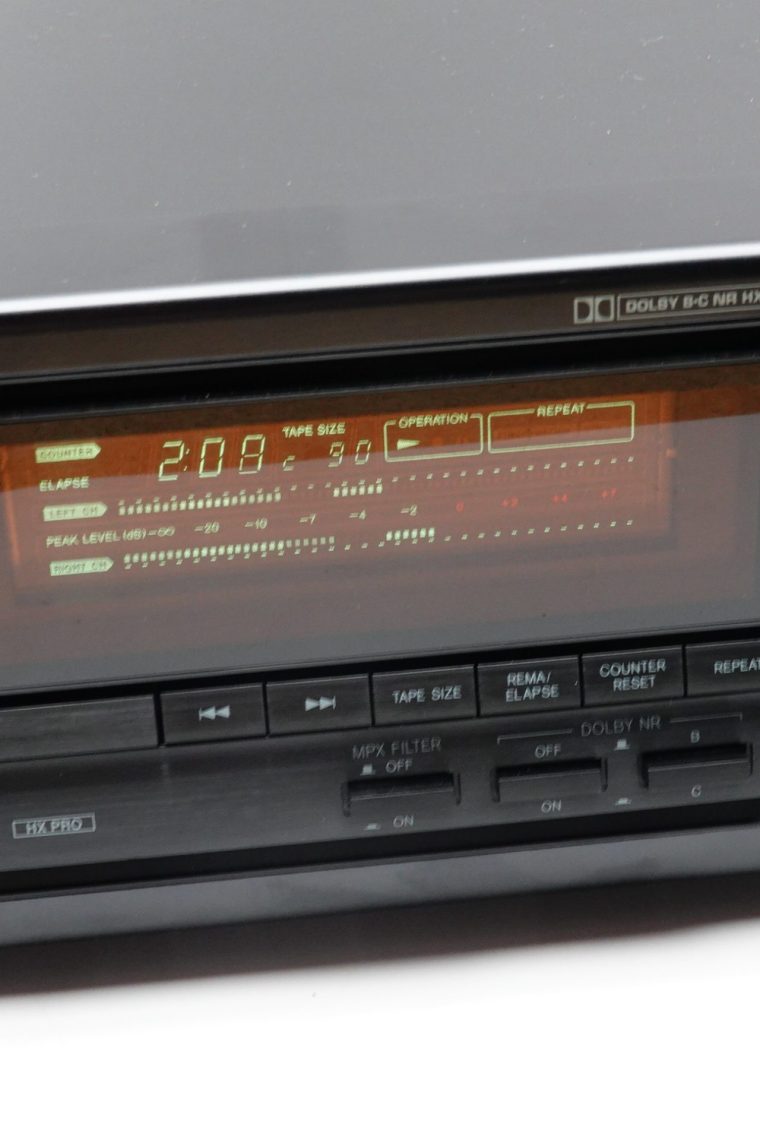

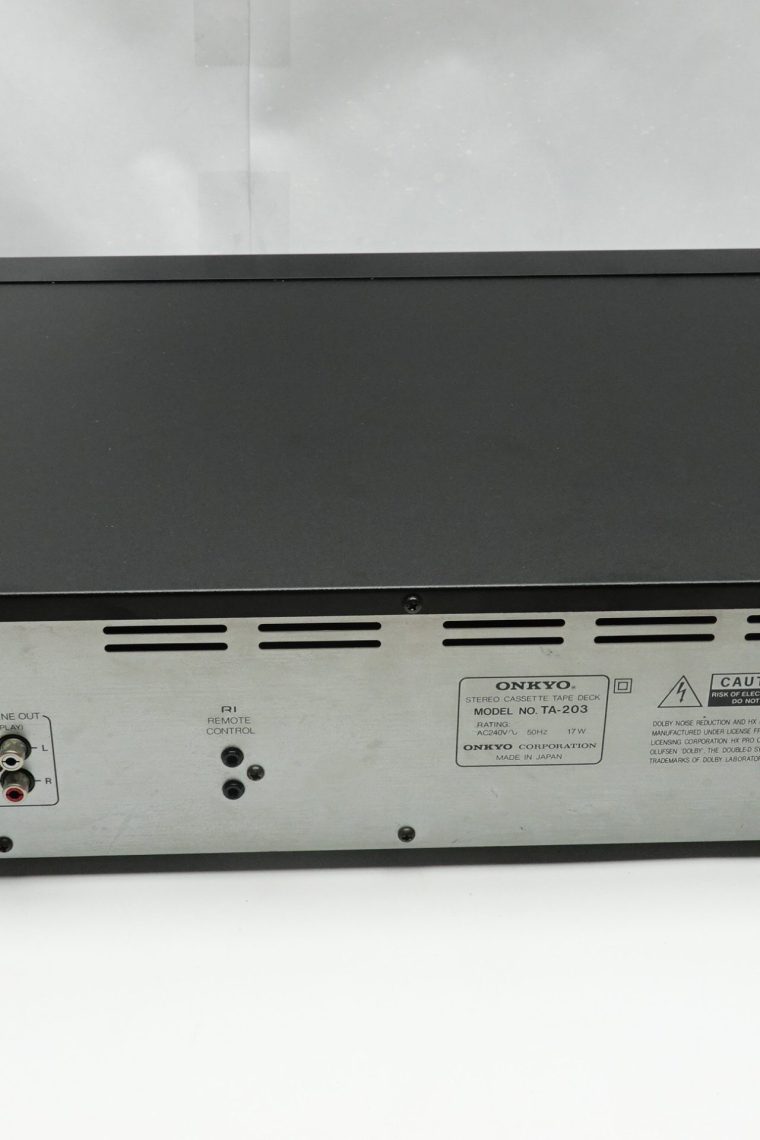

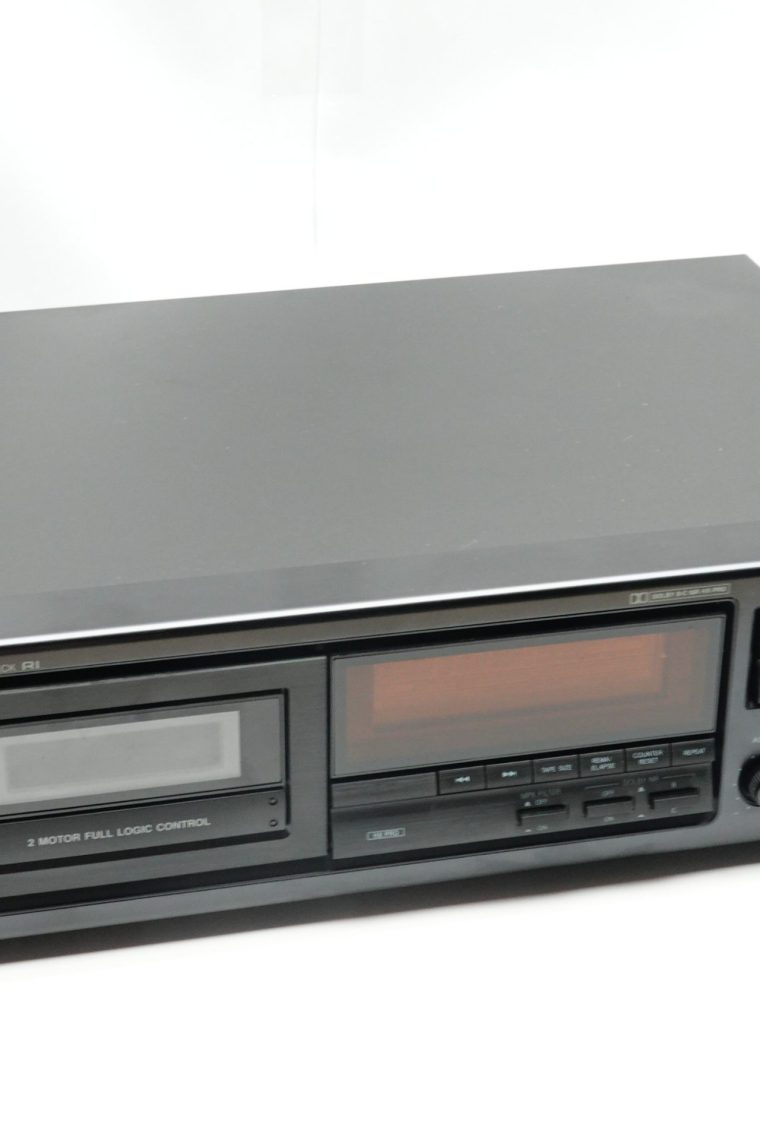

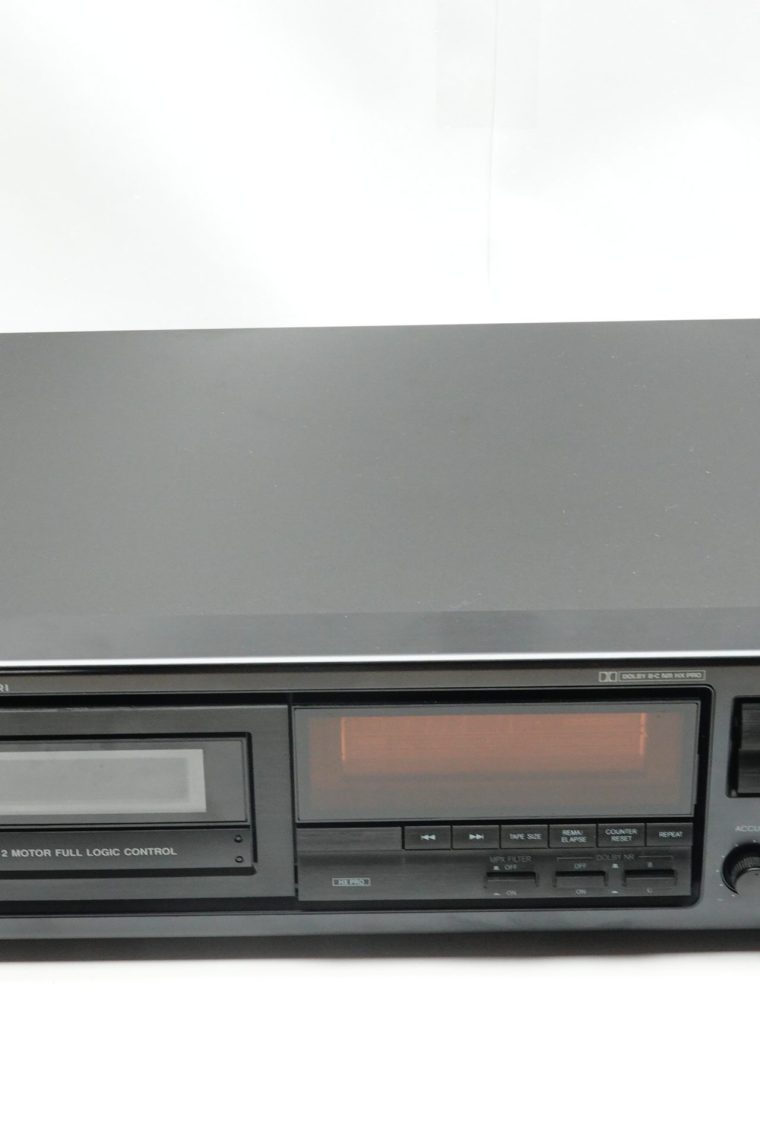

Onkyo TA-203 Casssette Deck

The Onkyo TA-203 is great sounding and good looking two head cassette deck with a lot of features. It comes with real time tape counter, title search, Dolby B & C, HX Pro as well as Bias fine adjustment. A great looking deck that will not disappoint.

Below service was carried out:

• Cleaning of Heads
• Cleaning of Capstan
• Demganetisation of Heads and capstan
• Speed Calibration

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x DC servo, 1 x DC

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Headroom Extension: HX Pro

Frequency Response: 20Hz to 19kHz  (Metal tape)

Signal to Noise Ratio: 78dB  (dolby C)

Wow and Flutter: 0.07%

Input: 80mV (line)

Output: 0.5V (line)

Dimensions: 455 x 120 x 308mm

Weight: 5.1kg

Year: 1991
