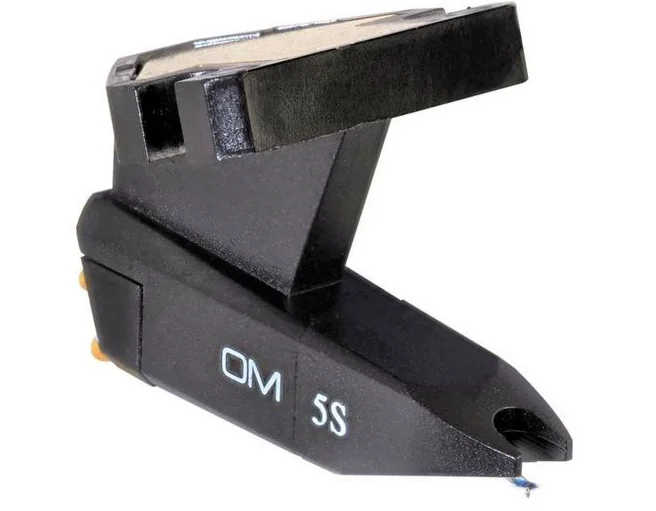

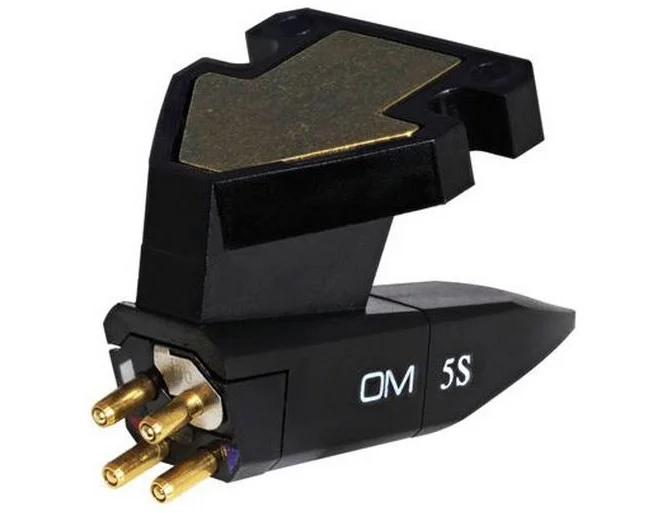

ORTOFON OM5S CARTRIDGE

Moving magnet cartridge features spherical stylus, robust and economic solution to suit most turntables.

• Frequency range at – 3dB: 20-20000 Hz
• 1.5–2.0g tracking force range
• Spherical type stylus

Output voltage at 1000 Hz, 5cm/sec. – 4 mV
Channel balance at 1 kHz – 2 dB
Channel separation at 1 kHz – 22 dB
Channel separation at 15 kHz – 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response – 20-20.000 Hz ± 2 dB
Tracking ability at 315Hz at recommended tracking force – 65 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Tracking force range – 1.5-2.0 g (15-20 mN)
Tracking force, recommended – 1.75 g (17.5 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-500
