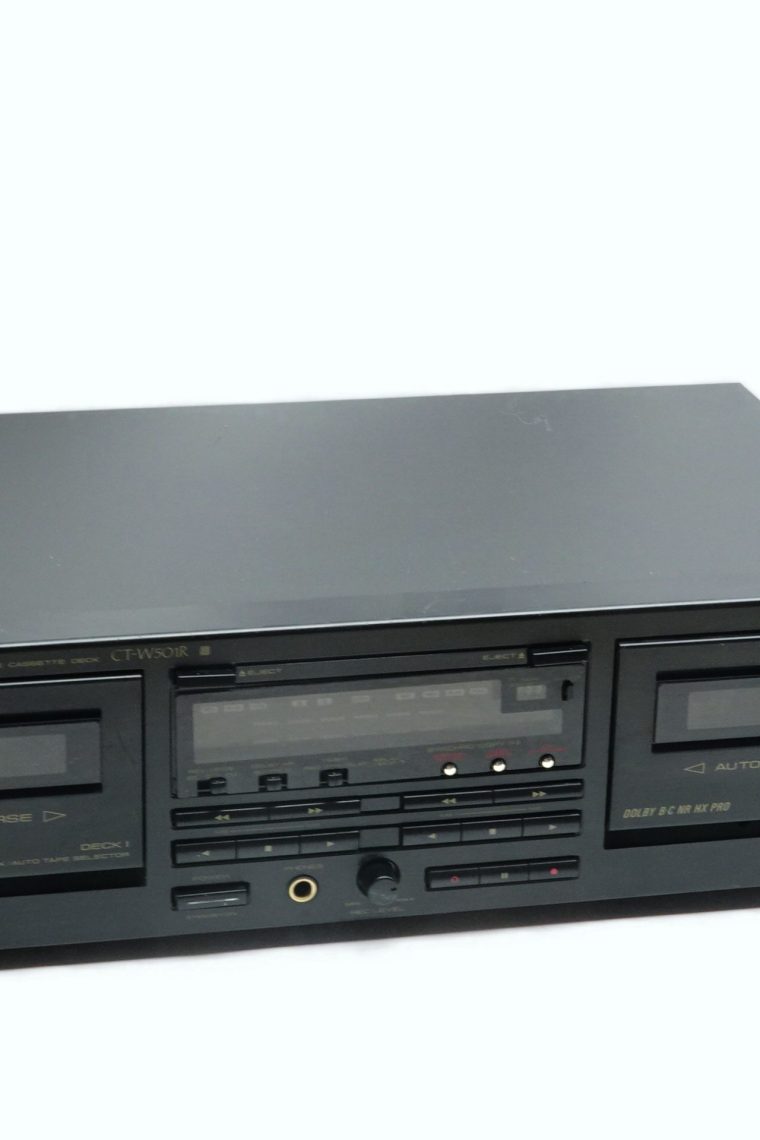

Pioneer CT-W501R Double Cassette Deck

The CT-W501R got all features you need on a double cassette deck. Auto reverse on Deck A and B for long continuous play. The built in HX Pro makes sure that recordings got crisp highs and on the noise reduction end we also got Dolby B & C.

This deck has been serviced:

• Replacement of both capstan belts
• Replacement of both transport belts
• Treatment of all pinch rollers
• Cleaning of heads and capstans
• Demagnetisation of heads and capstan
• Speed Calibration
• Full function test

Below is a test recording made with the CT-W501R and played back by it:

Specifications

Type: auto reverse, double compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x playback, 1 x erase

Motor: 2 x DC servo

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Headroom Extension: HX Pro

Frequency Response: 20Hz to 16.5kHz  (Metal tape)

Signal to Noise Ratio: 76dB  (dolby C)

Wow and Flutter: 0.1%

Total Harmonic Distortion: 0.8%

Input: 100mV (line)

Output: 0.5V (line)

Dimensions: 420 x 125 x 250mm

Weight: 4.2kg
