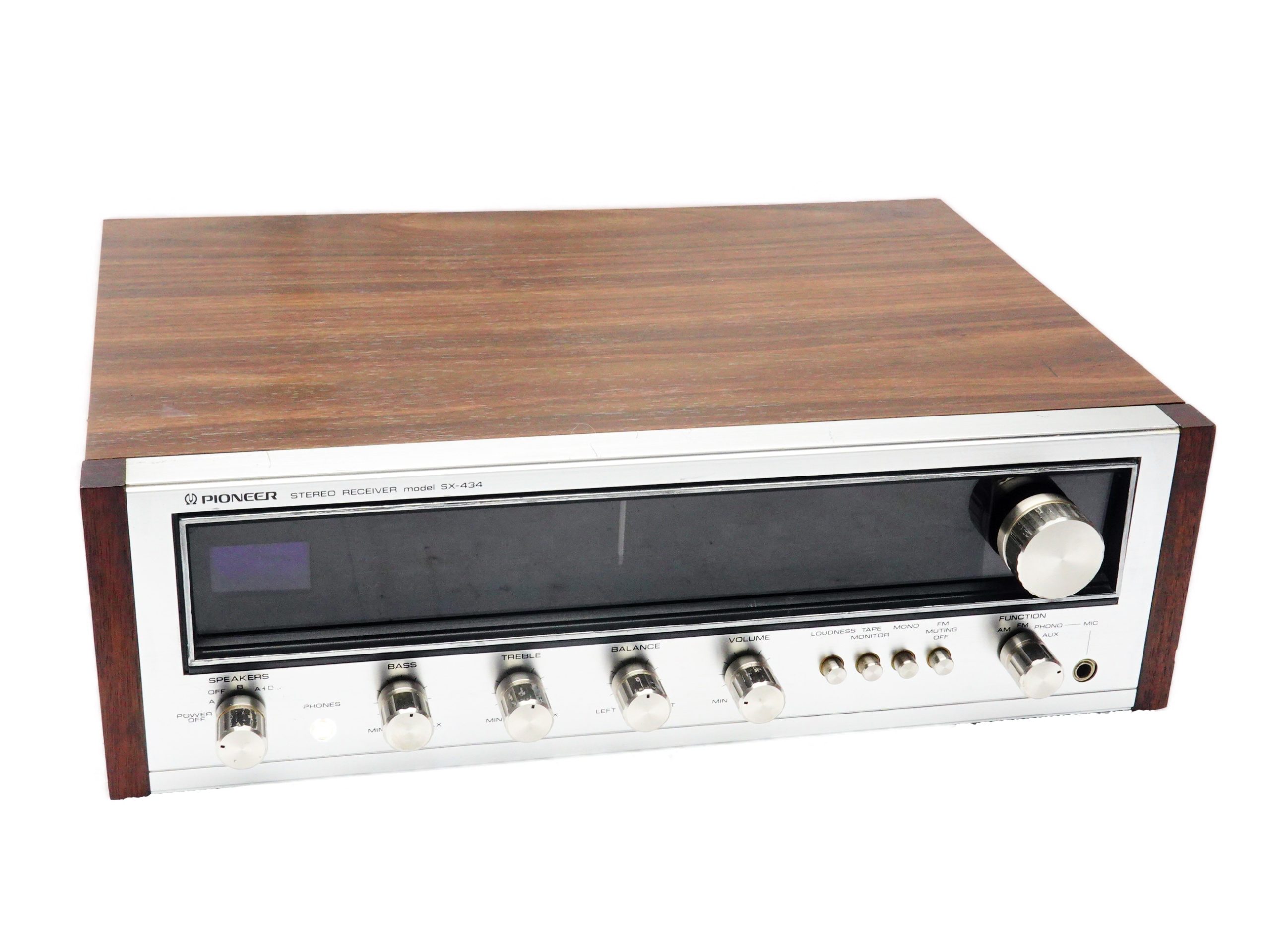

Pioneer SX-434 Receiver

The SX-434 is Pioneer am FM/MW stereo receiver from the year 1974.

It features a high performance FM front end with low noise FET and 3-gang frequency linear variable capacitor. Phase linear ceramic filters and an IC in the FM IF section provide high selectivity of 60dB.

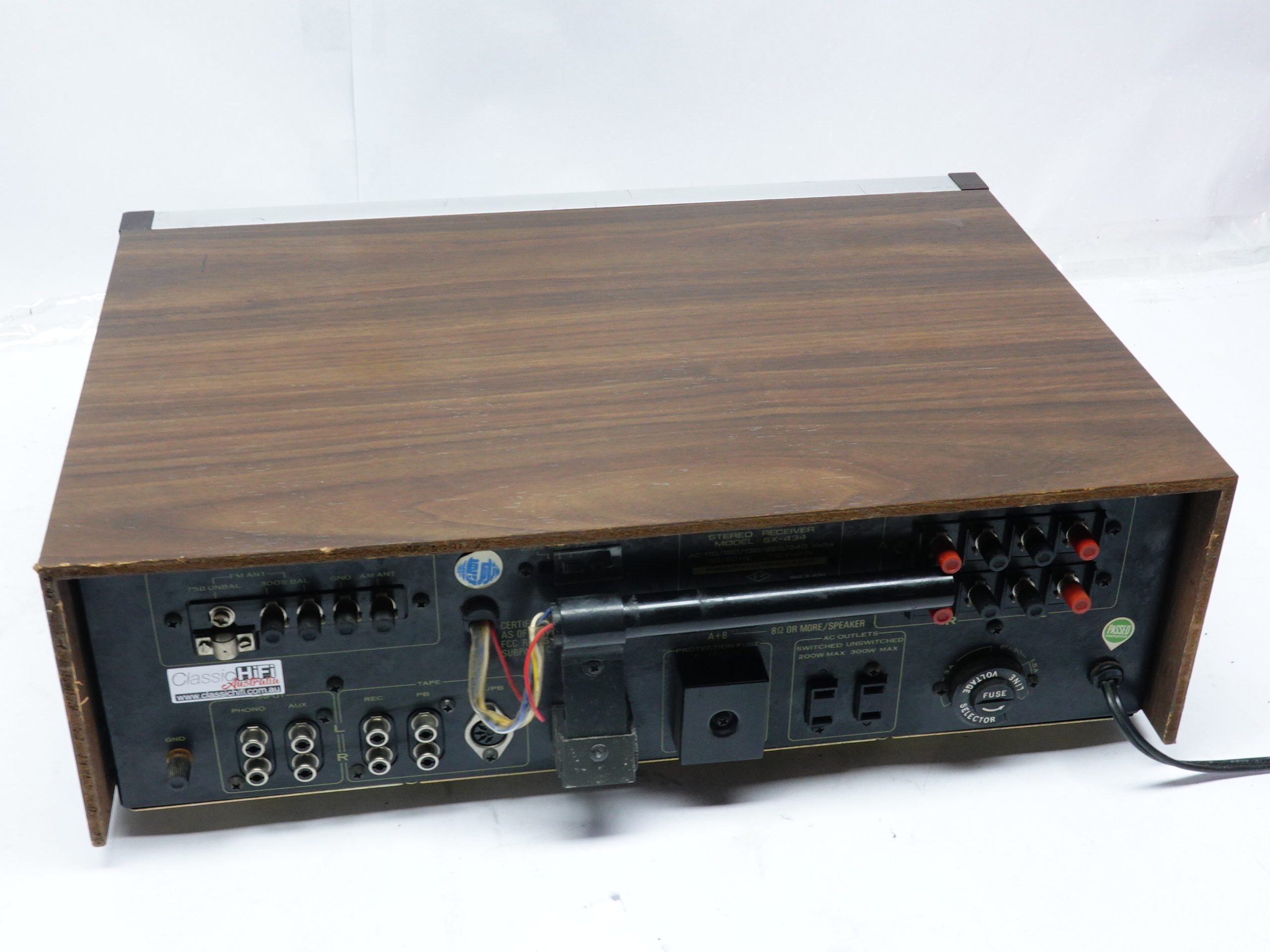

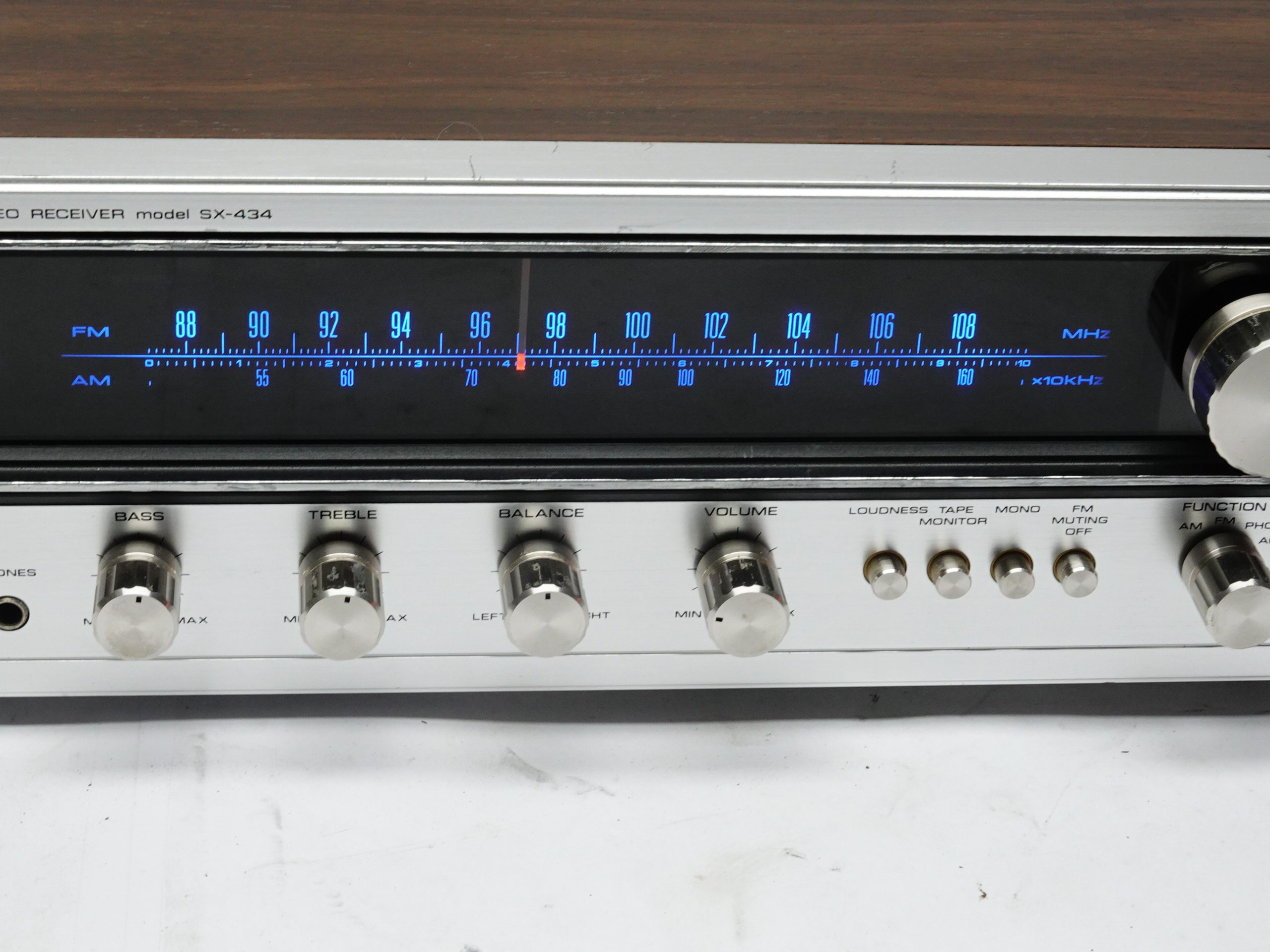

Other features include click stop tone controls, 2 pairs of speaker terminals and a headphone socket.

This unit has been restored to be close to its original condition as possible. All switches / knobs have been deoxidize and broken bulbs have been replace. A great looking that sound even better. Don’t underestimate its power by the values given by Pioneer.

With the AUX and Phono input ready to play your rcords of a vintage turntable or to hook up a Bluetooth bridge for streaming.

Specifications

Tuning range: FM, MW

Power output: 15 watts per channel into 8Ω (stereo)

Frequency response: 30Hz to 25kHz

Total harmonic distortion: 0.8%

Damping factor: 25

Input sensitivity: 10mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 65dB (mic), 70dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 1 x FET, 3 x IC, 27 x transistors, 13 x diodes

Dimensions: 430 x 140 x 347mm

Weight: 8.1kg

Accessories: FM T-type antenna

Year: 1974
