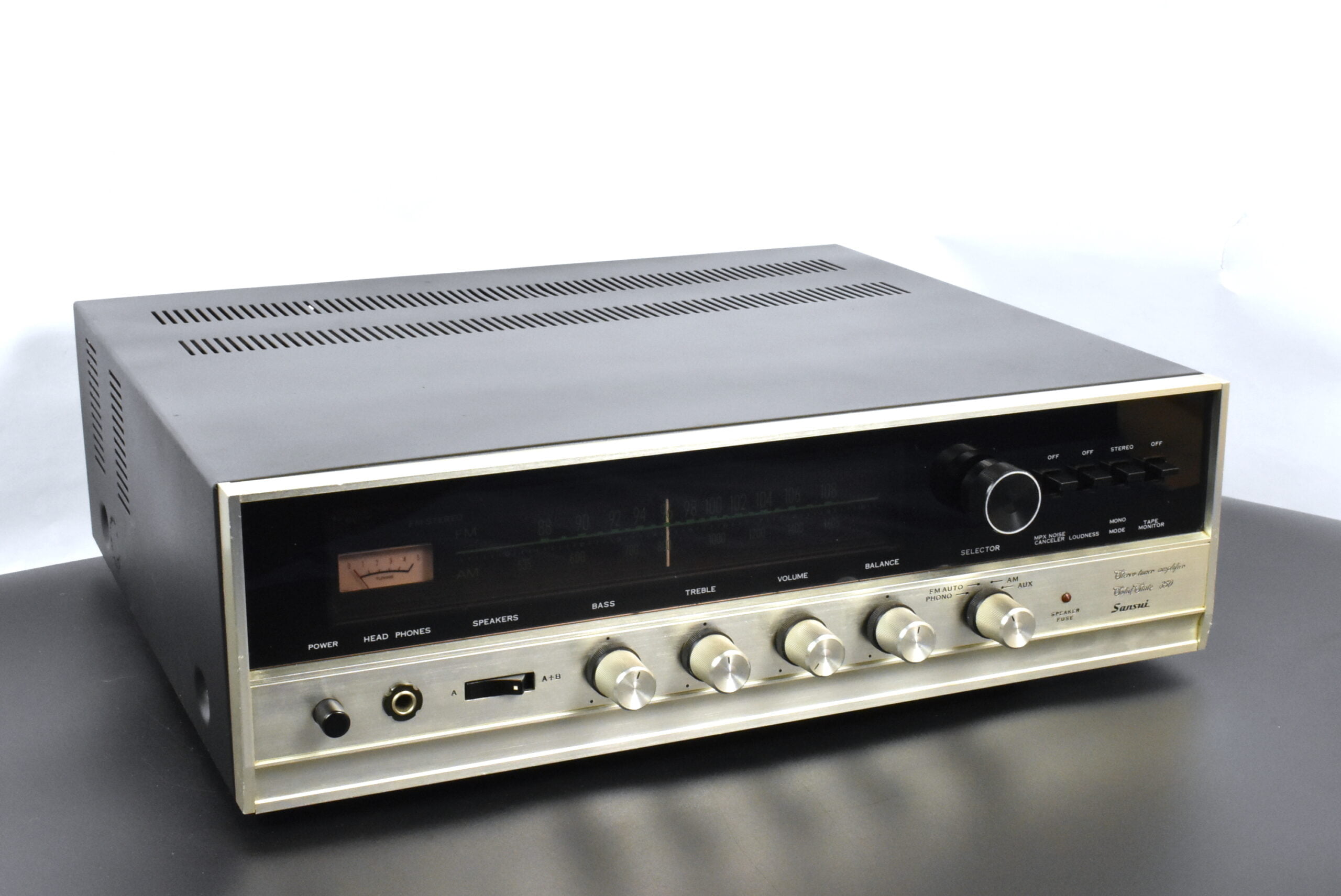

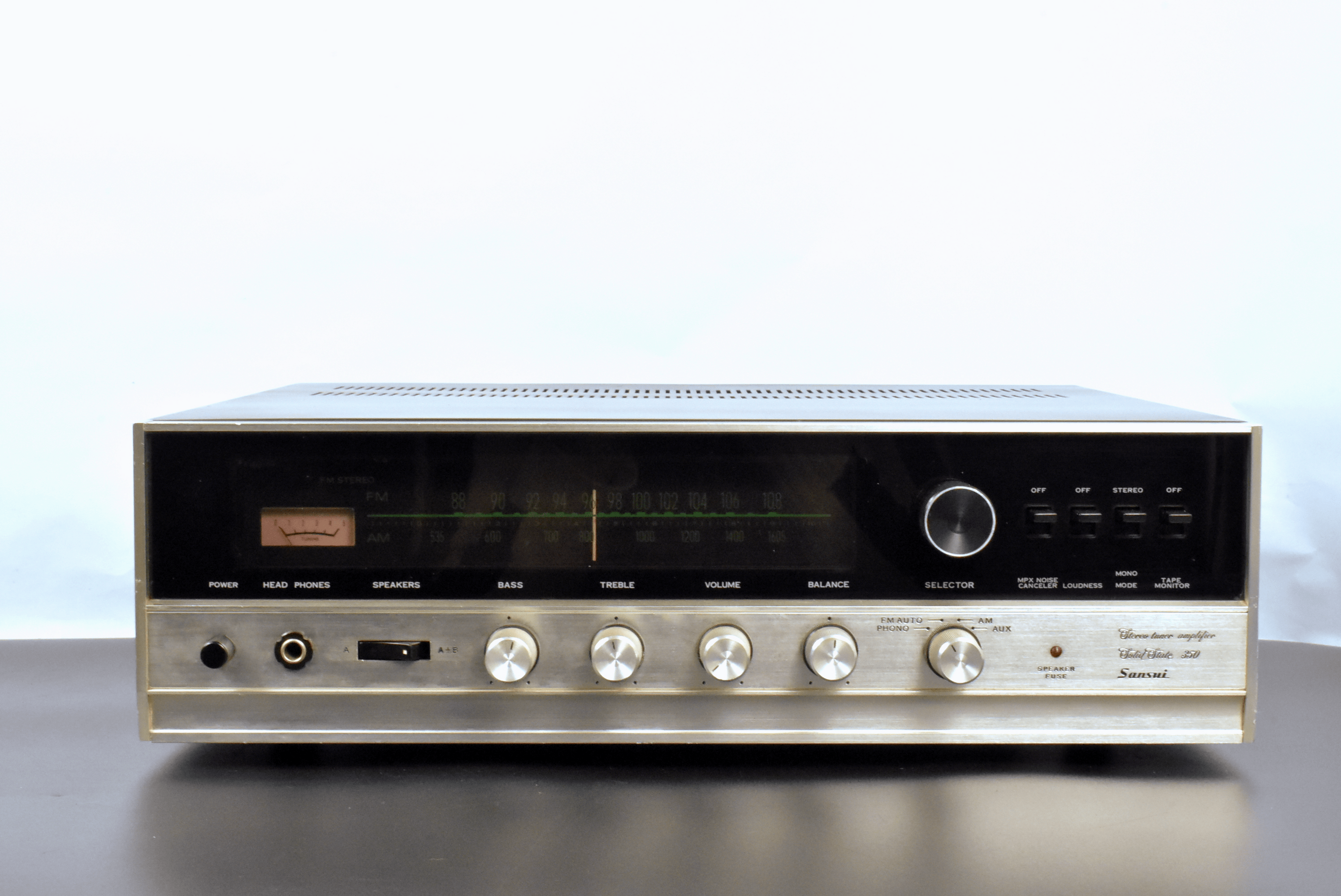

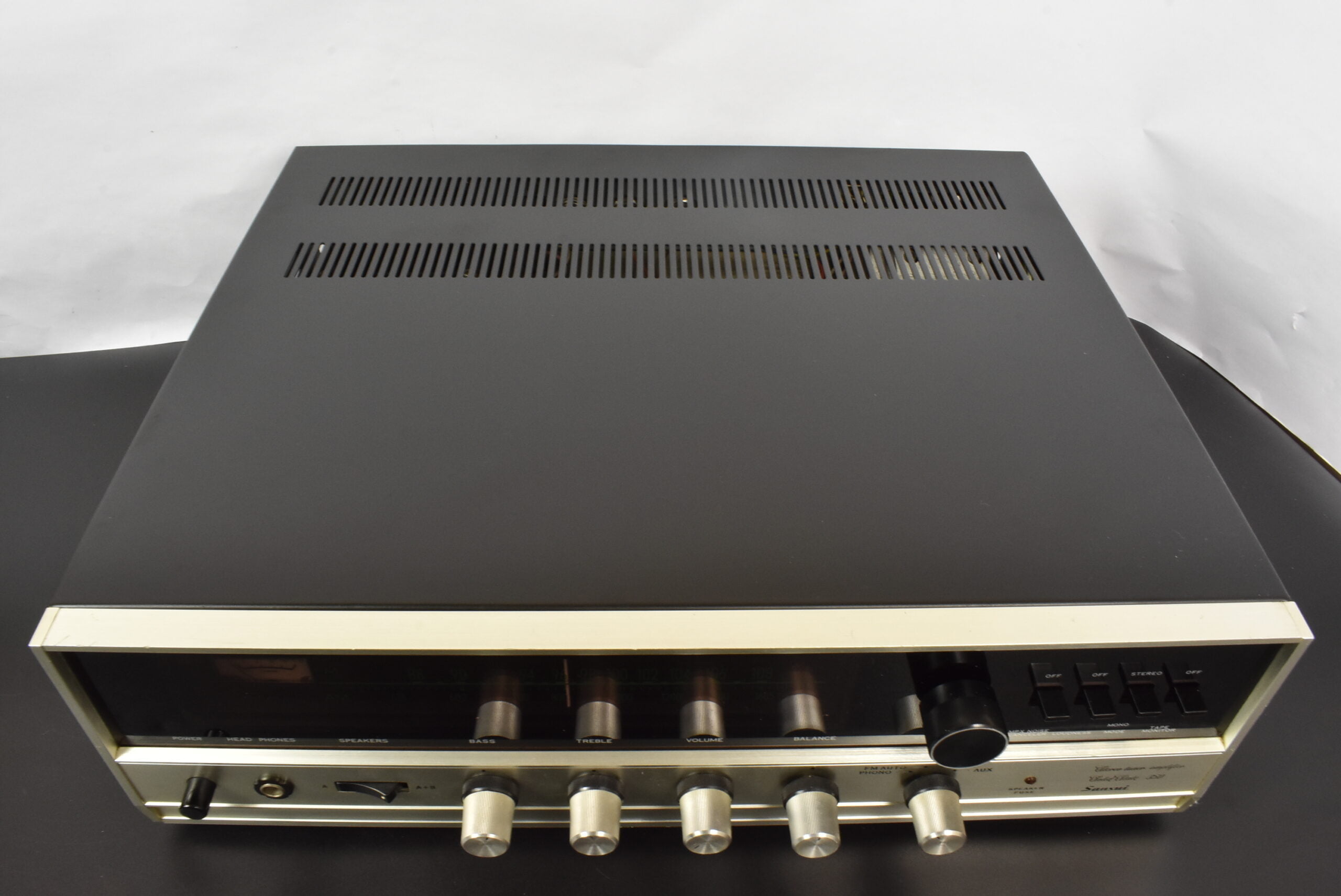

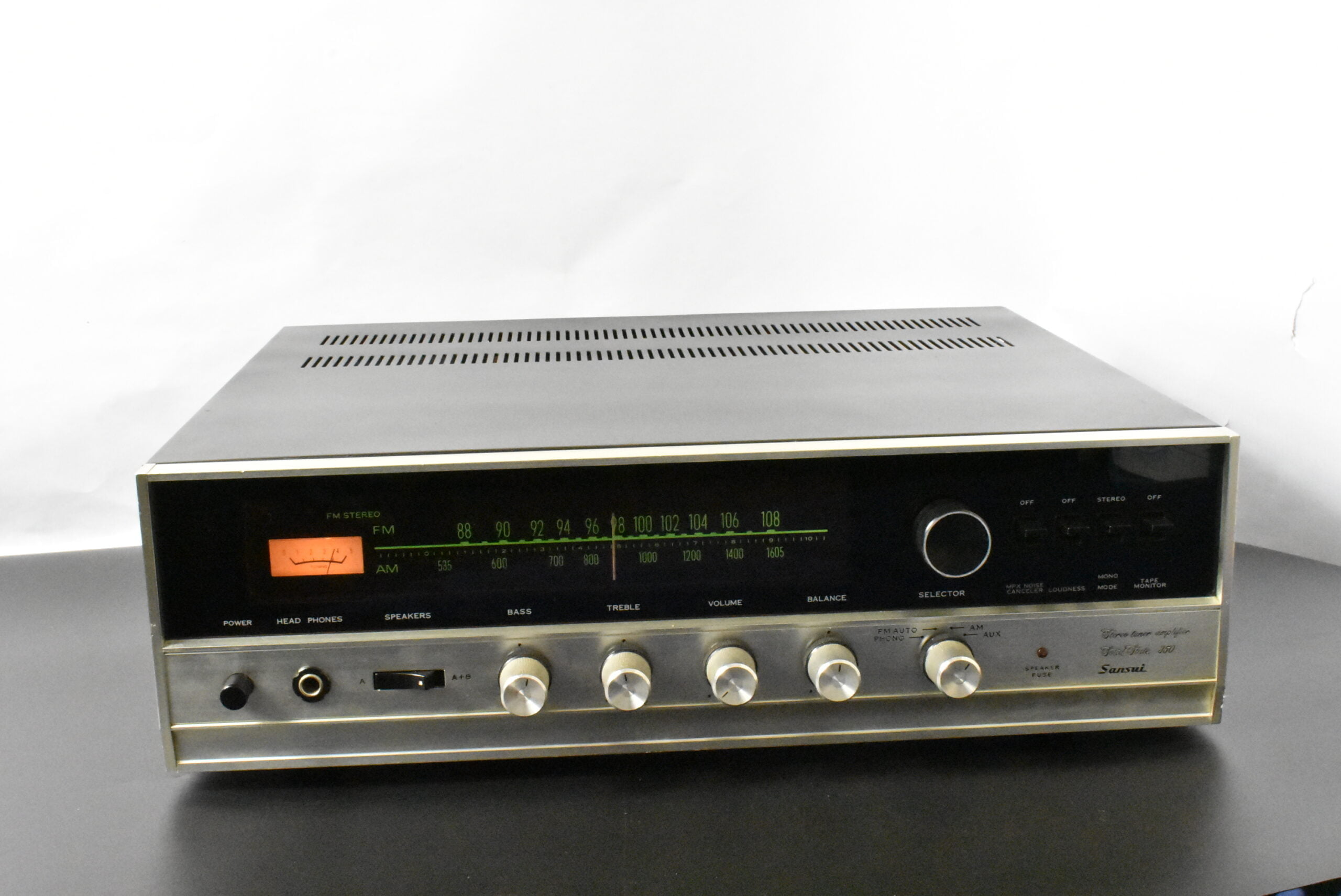

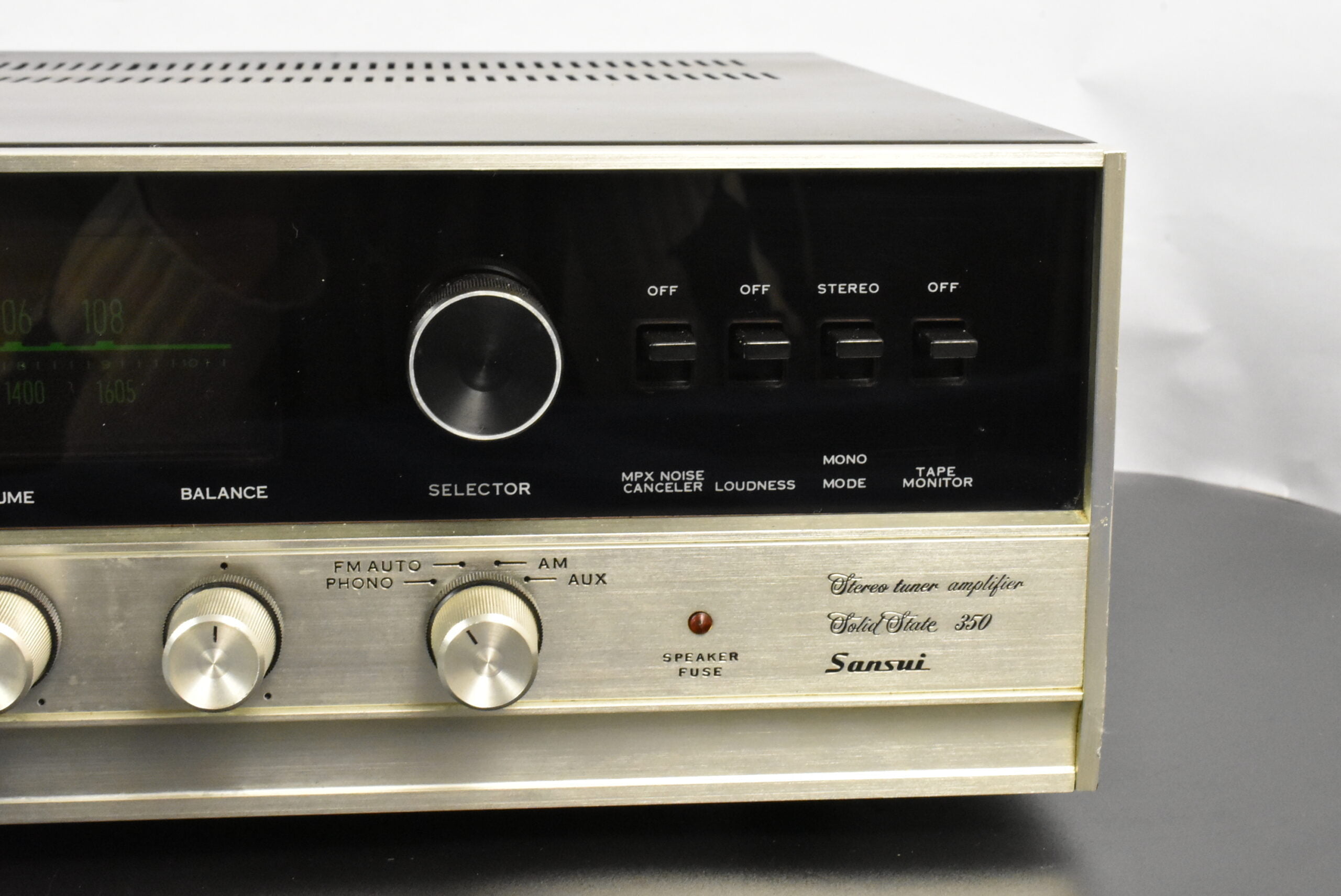

A beautiful receiver from one of the most popular brands for amplifiers in HiFi History – SANSUI. We spent quite some time to bring this beauty back to its glory. That there were signs on age is not surprising. It might look like from somewhere in the 70ties, but the 350 is actually from the year 1968. Carefully we took it apart and removed the entire front. Bulbs have been replaced with original spec replacement and the tuner scale has been cleaned. All dust has been removed and the beautiful fascia carefully been treated to remove any dirt and contamination – making it shine like day one. The case has received a new paint job and any dust has been cleaned out.
All potentiometers have been treated and even the AM/FM tuning knob has been lubricated to get its heavy flywheel to spin easily. That makes just searching for your radio program a joy. Electronically the 350 showed little age, we could retain the original capacitors and it has it sweet Sansui sound.
We provide 6 months warranty for this unit.
Description
With most of the same design and performance features of the larger Sansui 800, this model is the most complete receiver available anywhere under 50 watts.
For better FM performance, it too, features a FET and 3-gang capacitor front end.
In addition to improved FM sensitivity and selectivity (SN ratio of better than 50db), the 350’s FM section provides channel separation of better than 30db.
At home within a wide 30 to 20,000Hz power bandwidth, the 350 keeps distortion below a negligible 1% and features a damping factor of 34 at 8 ohms.

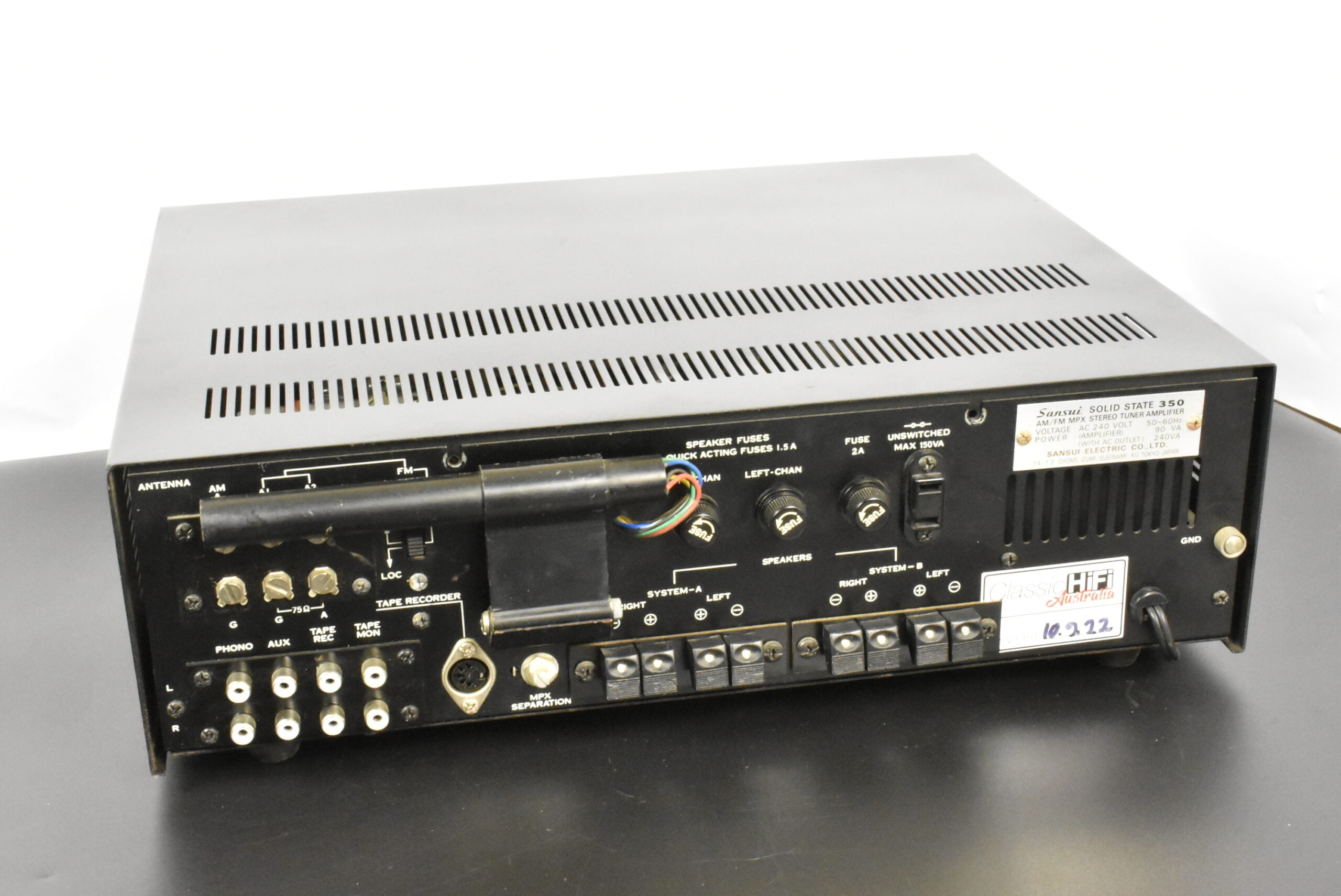

Other large receiver features include an ability to power up to two speaker systems, to operate off both 75 and 300 ohm antennas, and automatic FM mono stereo switching.
Specifications
Tuning range: FM, MW
Power output: 18 watts per channel into 8Ω (stereo)
Frequency response: 30Hz to 20kHz
Total harmonic distortion: 1%
Damping factor: 34
Input sensitivity: 2.2mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 60dB (MM), 65dB (line)
Output: 150mV (line)
Speaker load impedance: 8Ω (minimum)
Semiconductors: 31 x transistors, 21 x diodes, 4 x varistors
Dimensions: 4-1/2 x 15-13/16 x 13-1/8 inches
Weight: 9.5kg
Year: 1968
