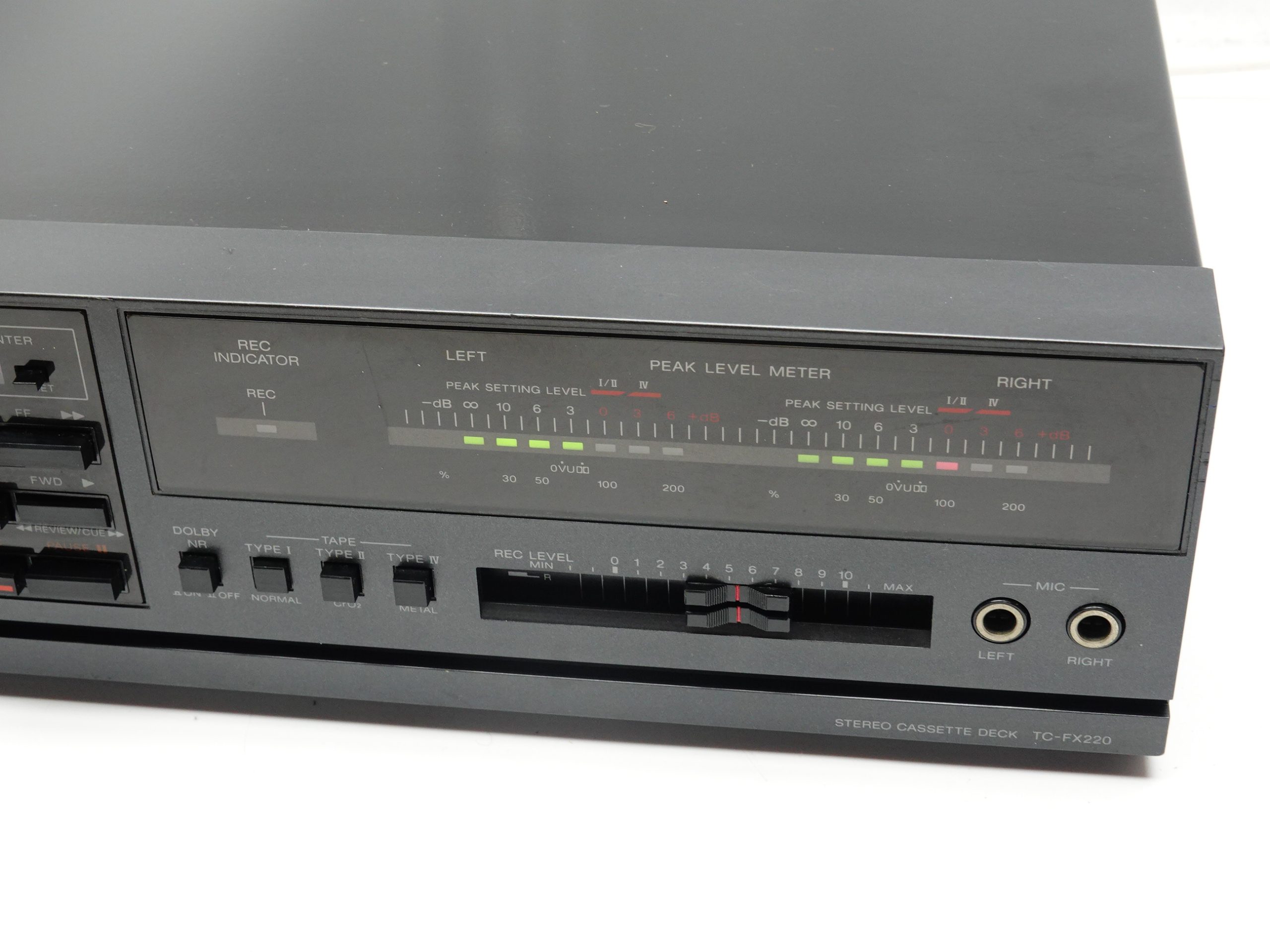

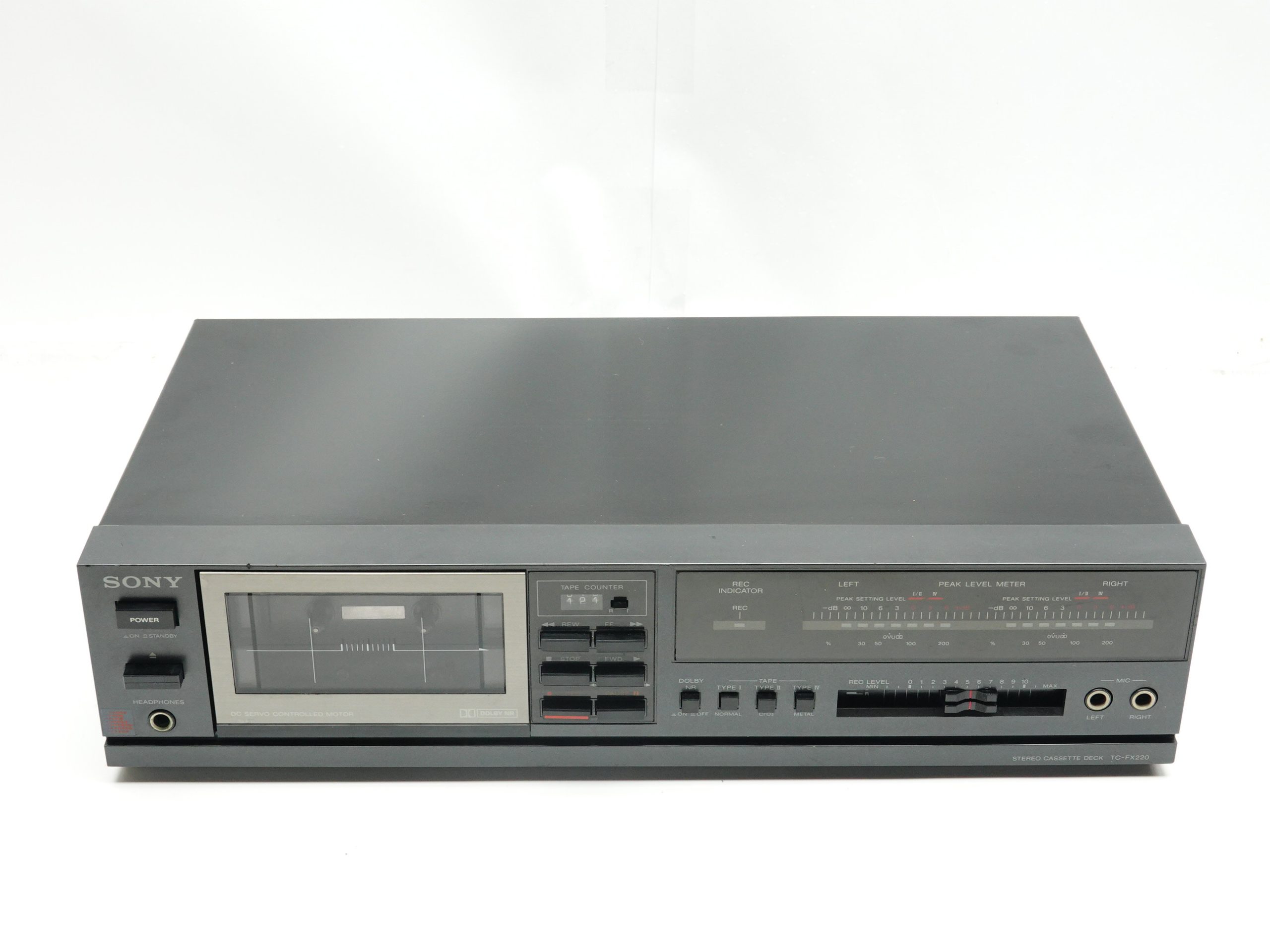

SONY TC-FX220

The TC-FX220 is an entry level cassette deck from SONY made in the early 80ties. It comes with Dolby B noise reduction, manual type selection and a modern solenoid driven mechanism. It might be an entry level deck, but built at the peak of the compact cassette medium and it performs quite well. A reliable performer that sounds really good.

Below service was carried out on this unit:

• Replacement of Capstan Belt
• Replacement of Logice Control Belt
• Replacement of Counter Belt
• Lubrication of moving parts
• Cleaning of heads and capstan with chemical
• Demgagnetisation of heads

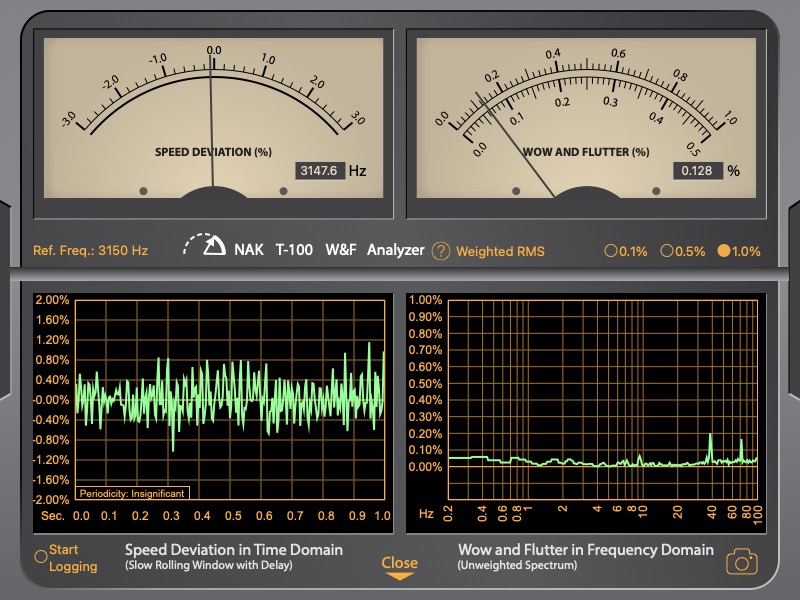

• Speed calibration
• Playback level calibration
• Full function test

We provide 6 months warranty for cassette decks.

Specifications

Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Tape Type: type I, CrO2, Metal

Noise Reduction: B

Frequency Response: 20Hz to 17kHz  (Metal tape)

Signal to Noise Ratio: 65dB  (dolby B)

Wow and Flutter: 0.05%

Total Harmonic Distortion: 1.0%

Input: 77.5mV (line), 0.25mV (mic)

Output: 0.44V (line)

Dimensions: 430 x 105 x 275mm

Weight: 6.6kg

Year: 1984
