A great auto revere cassette deck with all bells and whistles. That includes digital counters on both decks, Dolby B + C as well as HX Pro. A unit that won’t dissappoint. Especially with the left of the two built in decks receiving a brand new playback head with 0 hours on it!
This deck has been serviced:
- Replacement of the playback head of deck A with a factory new one
- Cleaning of playback / record heads on deck B
- Demagnetisation of head on decn B
- Cleaning of capstans with chemical
- Cleaning and treatment of original pinch rollers
- Speed Calibration
- Playback level calibration
- Record level calibration
- Full frequency check
- Full function test

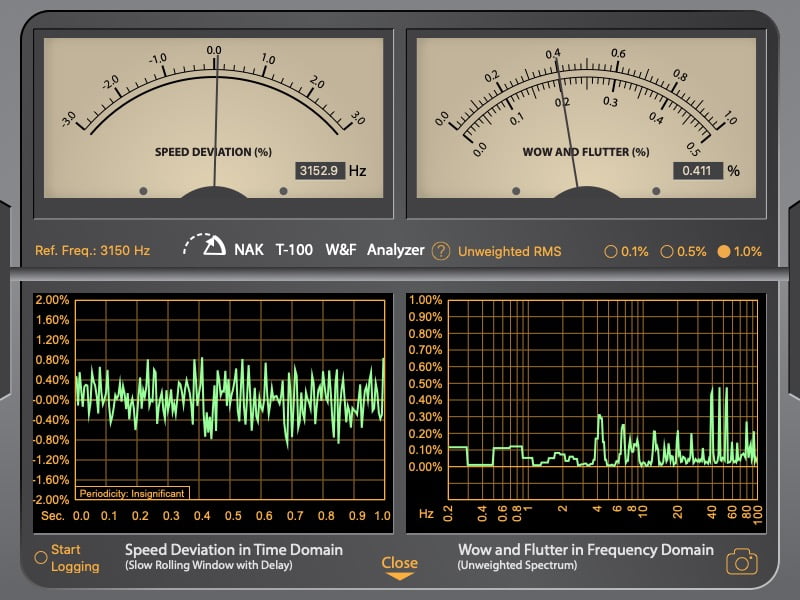

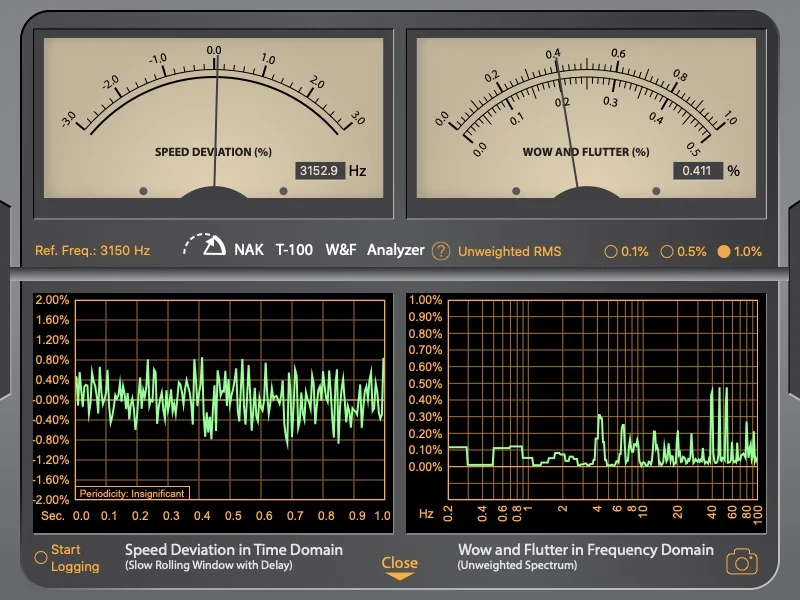

Here is a test recording made and played back on the TC-WR590:
Specifications
Type: auto reverse, double compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 30Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 73dB (dolby C)
Wow and Flutter: 0.08%
Total Harmonic Distortion: 1.8%
Input: 160mV (line)
Output: 0.5V (line)
Dimensions: 430 x 123 x 285mm
