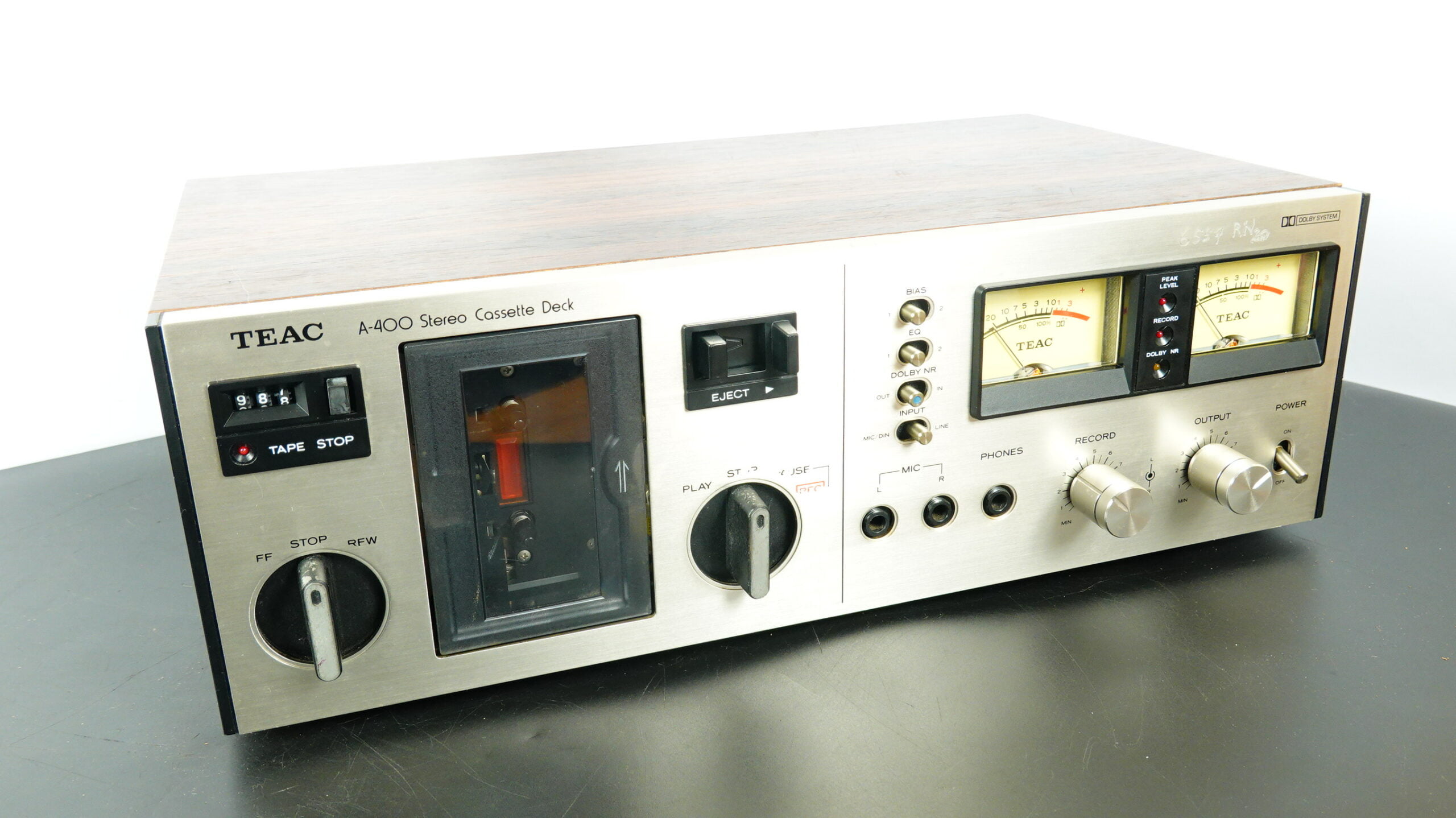

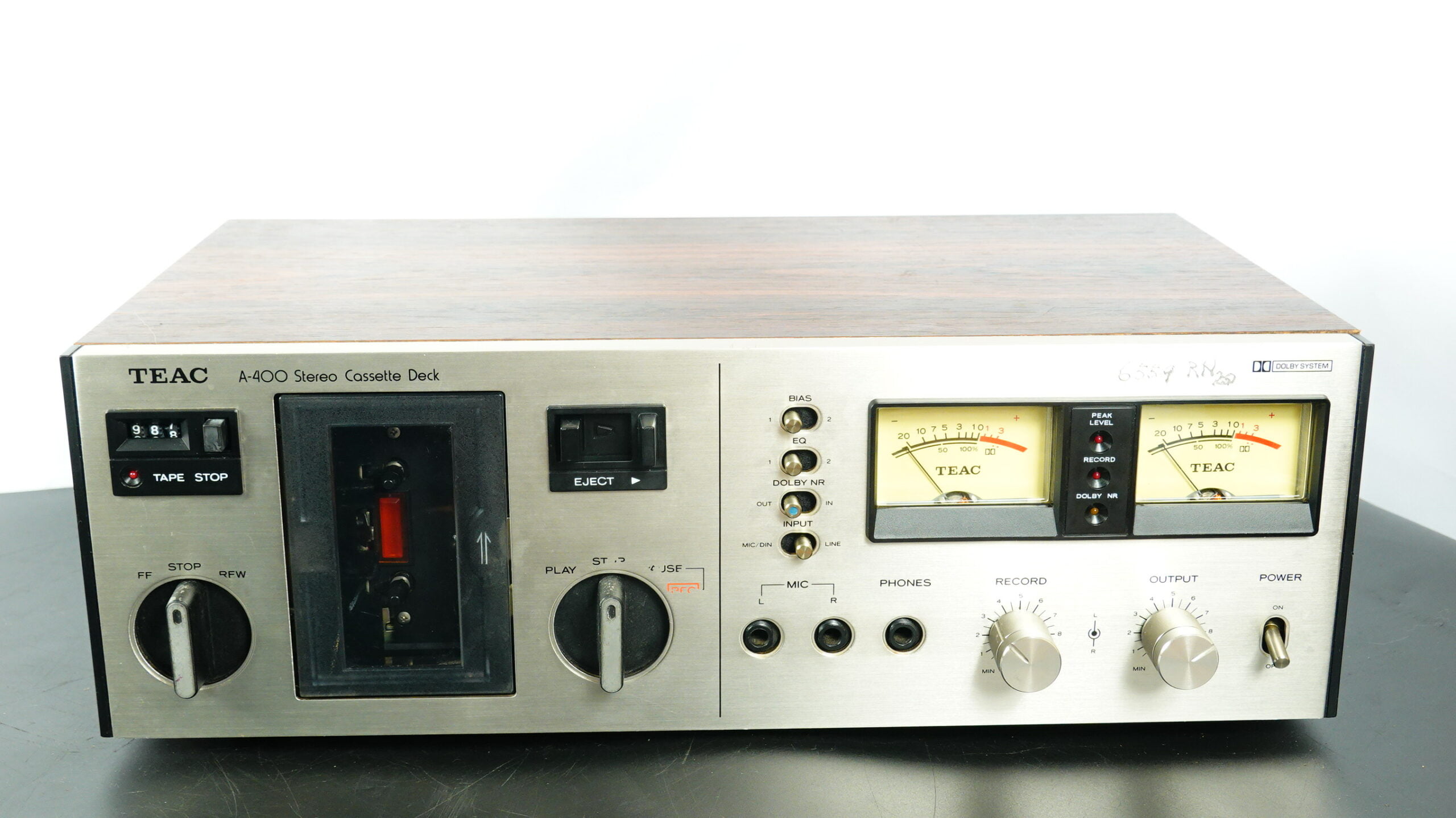

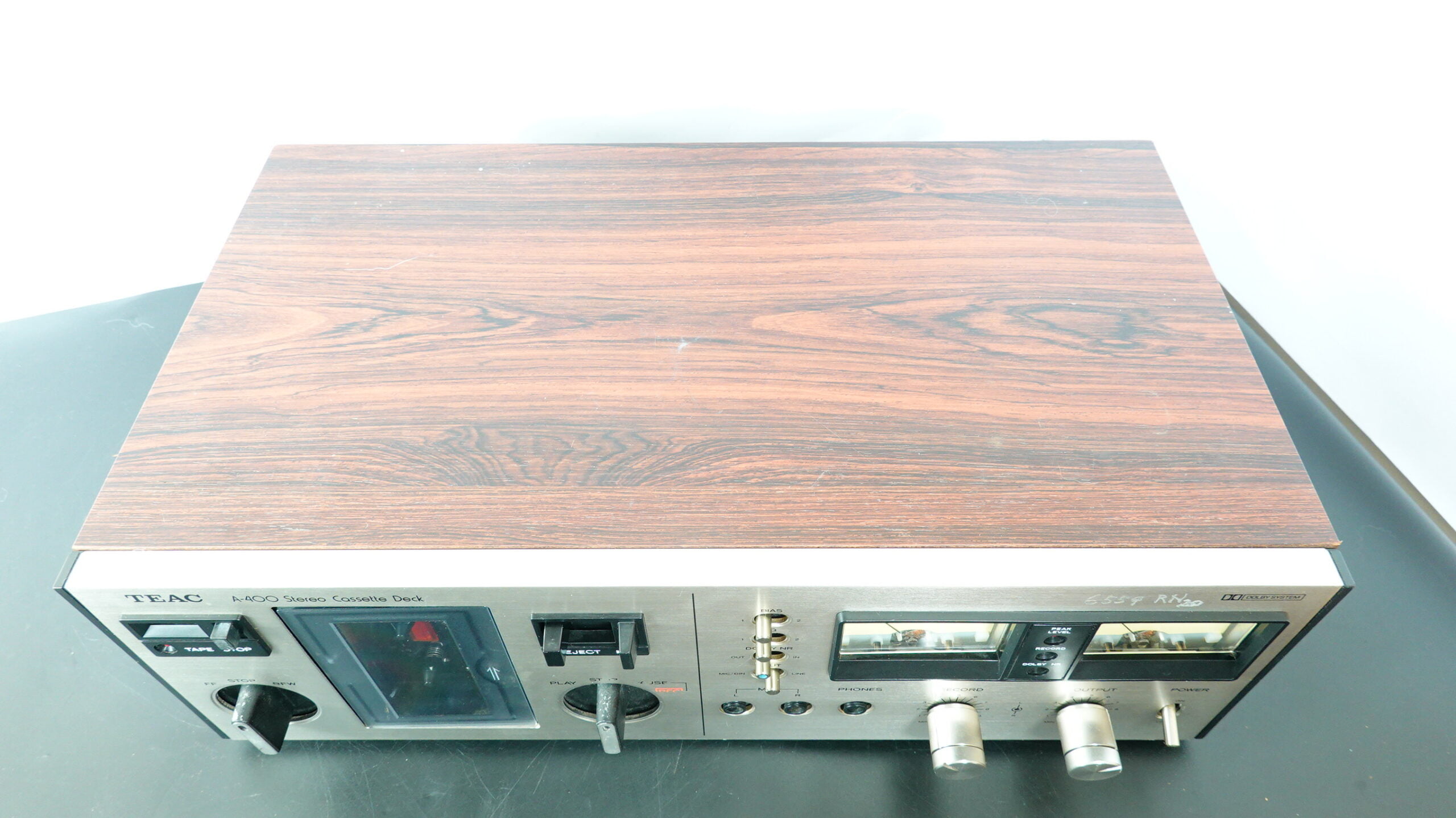

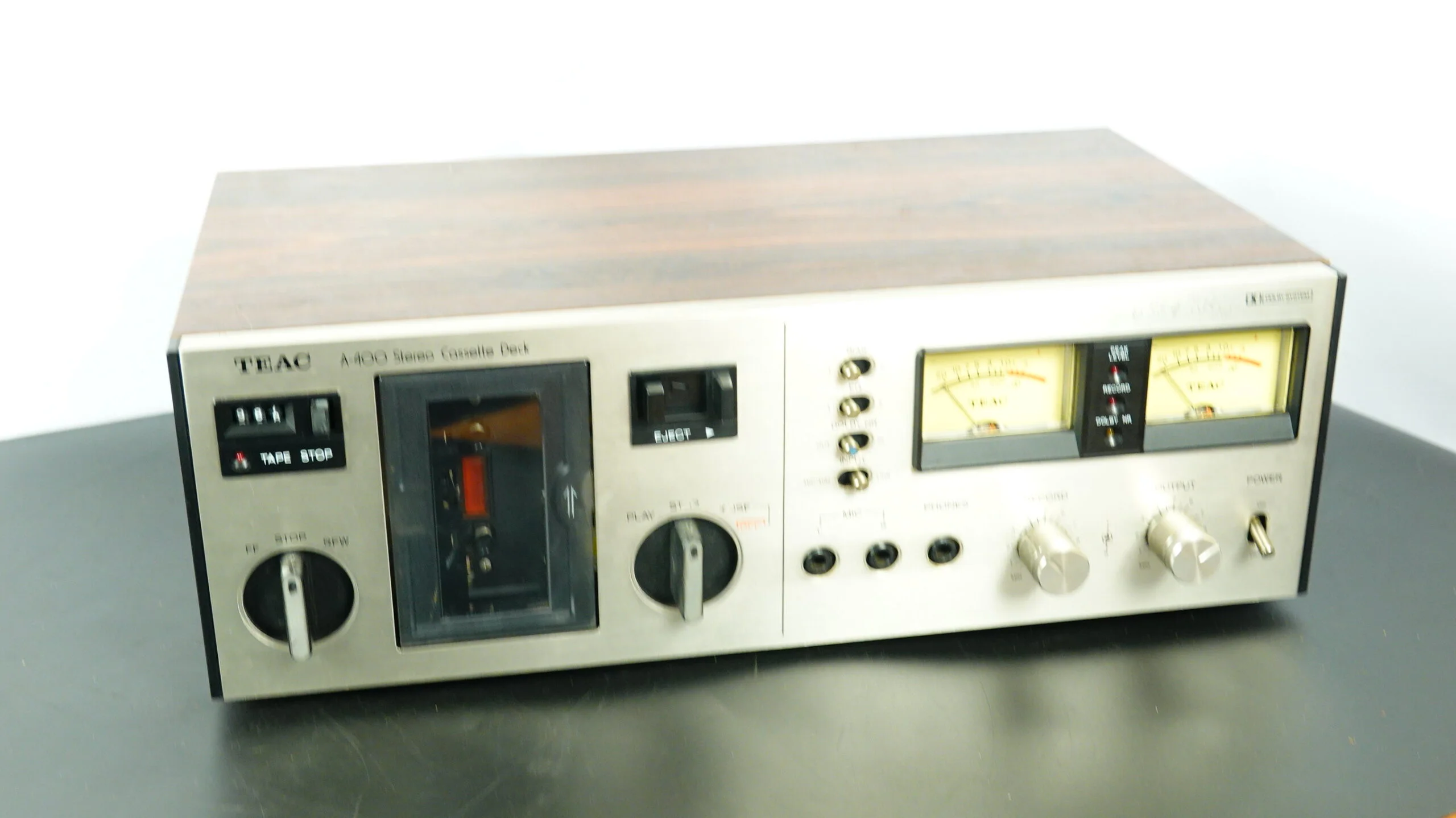

A beautiful cassette deck from the mid 70ties in a wooden case. These decks have a vertical mechanism and two rotary knobs for control left and right. The deck performs well and has been fully serviced. It has two beautiful lit VU meters and the fascia is in good condition – but has an engraving on the top right.
This deck has received the below service:
- Replacement of all 3 belts.
- Lubrication of all moving parts
- Cleaning of heads and capstan
- Treatment of pinch roller
- Cleaning of all switches and potetntiometers
- Demagnetisation of hedas and capstan
- Speed calibration
- Playback Level Calibration
- Record Level Calibration
- Full function test
Description
Features of the TEAC A-400 include an exclusive vertical transport system, mechanically interlocked twin rotary lever controls, dolby noise reduction, DC servo-controlled motor, individual dual position bias and equalization selectors, two large VU-type loudness meters, peak reading LED level indicator, individual input and output level controls and an automatic stop function.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC servo
Tape Type: type I, CrO2
Noise Reduction: B
Frequency Response: 30Hz to 16kHz (Cr02 tape)
Signal to Noise Ratio: 60dB (dolby B)
Wow and Flutter: 0.08%
Input: 60mV (line), 0.25mV (mic)
Output: 0.775V (line)
Dimensions: 155 x 440 x 285mm
