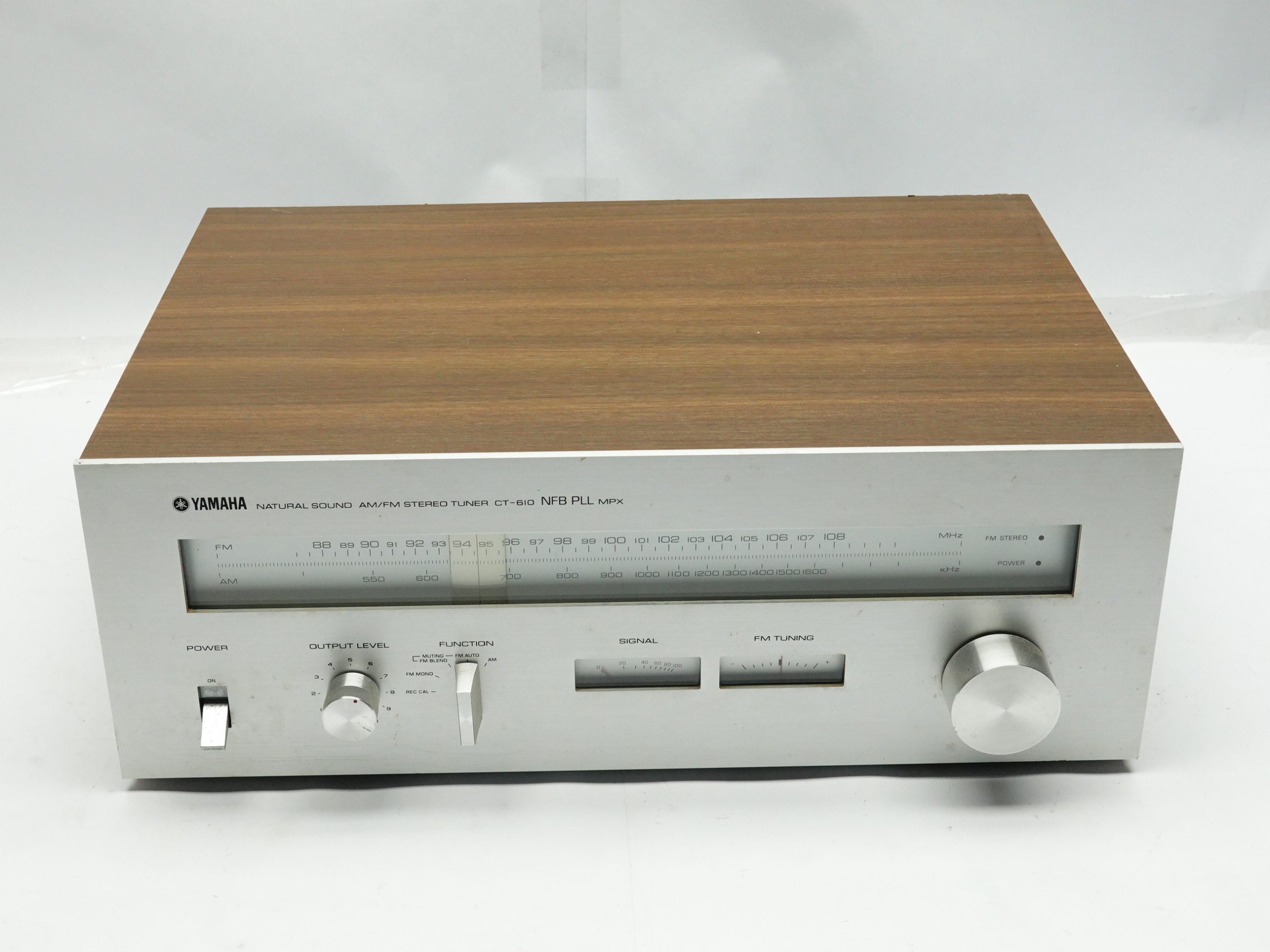

Yamaha CT-610 Tuner

A beautiful tuner from the 70ties that has been fully serviced and comes with 6 month warranty.

Description

Building on Yamaha’s unique audio and electronic engineering know-how, as developed for the top of the line CT-7000, the CT-610 features low distortion, high sensitivity and excellent signal to noise ratio.

Specifications

Type: Mono/Stereo Tuner

Tuning Bands: FM, MW

Tuning Scale: Analogue

FM Tuning Range: 88 to 108 MHz

MW Tuning Range: 525 to 1605 kHz

Sensitivity: 1.8uV (FM)

Signal to Noise Ratio: 71dB (FM), 50dB (MW)

Distortion: 0.8% (FM), 0.6% (MW)

Selectivity: 75dB (FM), 25dB (MW)

Frequency response: 20Hz to 15kHz (FM)

Output: 500mV (FM), 125mV (MW)

Semiconductors: 22 x transistors, 3 x IC, 1 x FET, 10 x diodes

Dimensions: 435 x 160 x 349mm

Weight: 6kg
